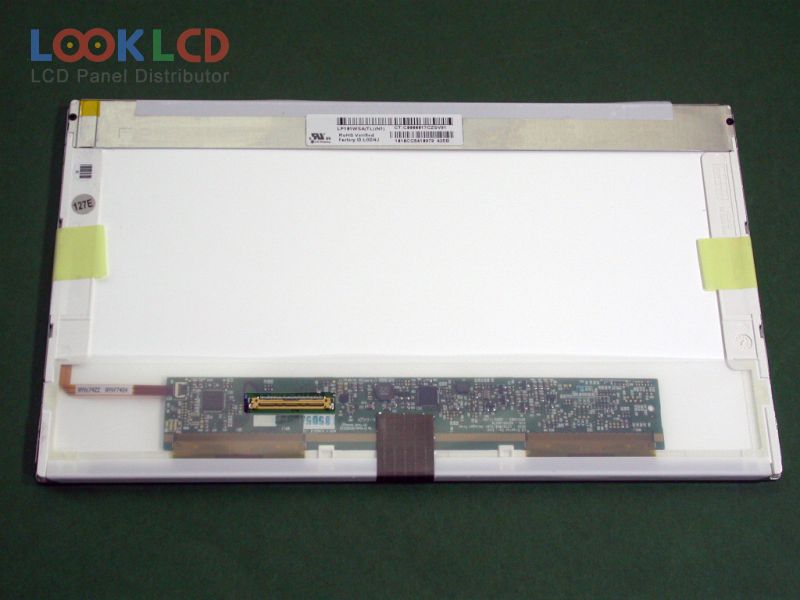

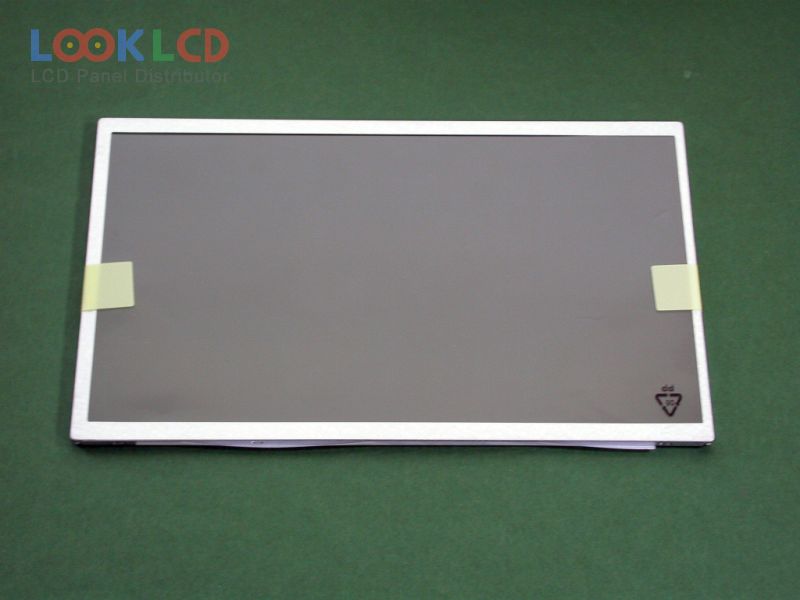

| Varenummer | LP101WSA-TLN1 |
| Mærke | LG Display |
| Størrelse | 10.1 |
| Ansøgning | NOPC |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP101WSA-TLN1 13 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 222.72×125.28 mm |
| omrids | 235×143×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |

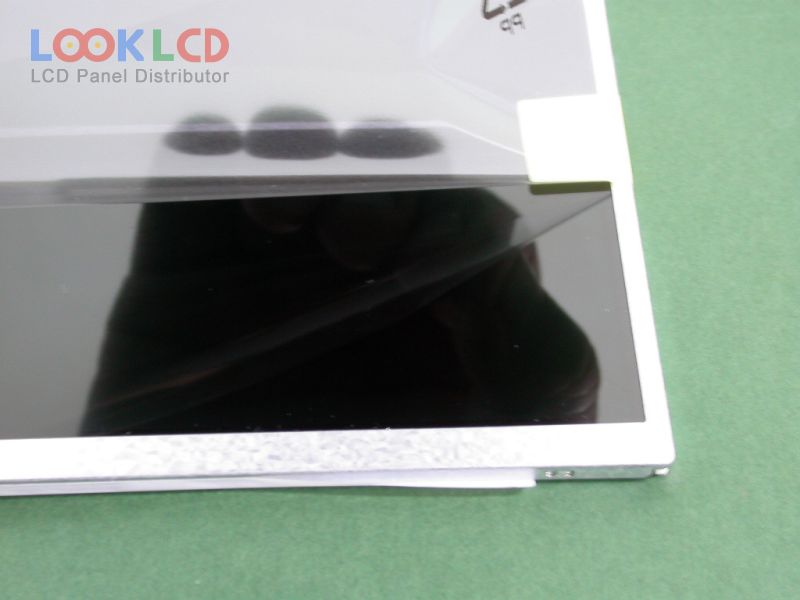

| overflade | Glare (Haze 0%) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NOPC |
| LP101WH1-TLA1 | LG Display | 10.1 | 1366×768 |
| LP101WH1-TLB2 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLA6 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLP2 | LG Display | 10.1 | 1366×768 |
| LP101WS1-TLA1 | LG Display | 10.1 | 1024×576 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| LP101WSA-TLN1 | LG Display | 10.1 | 1024×600 |
| LP101WX1-SLB1 | LG Display | 10.1 | 1280×800 |
| LP101WX1-SLP2 | LG Display | 10.1 | 1280×800 |
| LP101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| B116XTN01.0 HW1A | AUO | 11.6 | 1366×768 |
| B116XW05 V0 | AUO | 11.6 | 1366×768 |
| LP101WS1-TLA1 | LG Display | 10.1 | 1024×576 |
| LP101WSB-TLN1 | LG Display | 10.1 | 1024×600 |
| LTN101NT08-T01 | Samsung | 10.1 | 1024×600 |
| LTN116AT01-401 | Samsung | 11.6 | 1366×768 |
| LTN116AT07-B01 | Samsung | 11.6 | 1366×768 |
| N101L6-L02 | Innolux | 10.1 | 1024×600 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| N116BGE-L11 | Innolux | 11.6 | 1366×768 |
