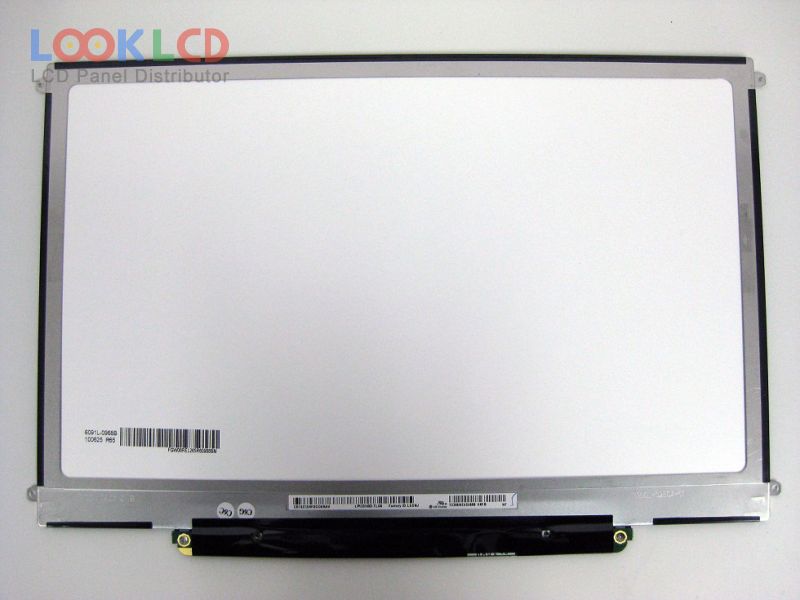

| Varenummer | LP133WX2-TLG6 |
| Mærke | LG Display |
| Størrelse | 13.3 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 275 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LP133WX2-TLG6 6 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 13.3 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 286.08×178.8 mm |
| omrids | 297.15×192.15×3.68 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Glare (Haze 0%), Hard coating (2H), Antireflection |
| lysstyrke | 275 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
