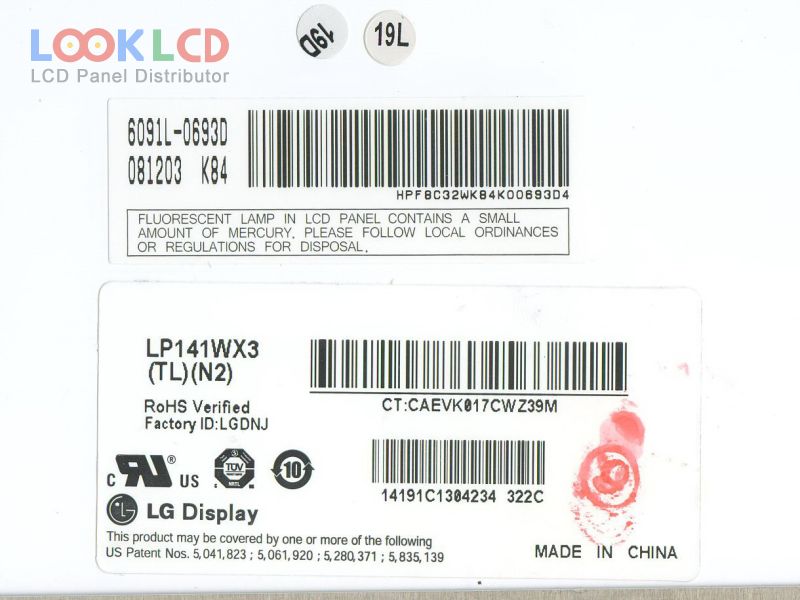

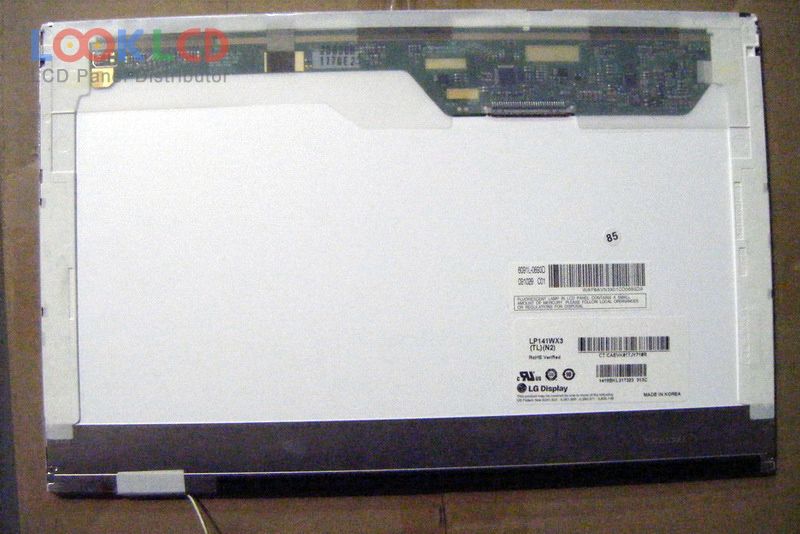

| Varenummer | LP141WX3-TLN2 |
| Mærke | LG Display |
| Størrelse | 14.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP141WX3-TLN2 18 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 303.74×189.84 mm |
| omrids | 319.5×205.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 40/40/15/35 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP141WP1-TLA2 | LG Display | 14.1 | 1440×900 |
| LP141WP2-TLA1 | LG Display | 14.1 | 1440×900 |
| LP141WX1-TLE1 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLN2 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLQ1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLB1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLC1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLP2 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLP3 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TPP1 | LG Display | 14.1 | 1280×800 |
| B154EW08 V0 HW2A | AUO | 15.4 | 1280×800 |
| HT140WXB-601 | BOE | 14.0 | 1366×768 |
| LQ150X1LAM3 | SHARP | 15.0 | 1024×768 |
| LTD104EA5W | TOSHIBA | 10.4 | 1024×768 |
| LTD121EX1S | TOSHIBA | 12.1 | 1280×768 |
| LTN140AT04-G01 | Samsung | 14.0 | 1366×768 |
| LTN140KT03 | Samsung | 14.0 | 1600×900 |
| LTN141AT13-H01 | Samsung | 14.1 | 1280×800 |
| LTN154X3-L06-J | Samsung | 15.4 | 1280×800 |
| LTN170CT08-D01 | Samsung | 17.0 | 1920×1200 |
