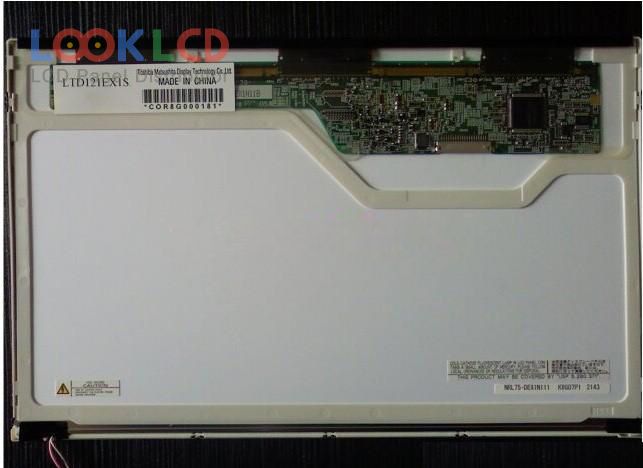

| Varenummer | LTD121EX1S |
| Mærke | TOSHIBA |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | Toshiba Matsushita |
| panel model | LTD121EX1S 2 Compatible model |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 263.04×157.824 mm |
| omrids | 275×173.5×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 50 (Max.)(Tr+Td) |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LTD121C35S | TOSHIBA | 12.1 | 800×600 |
| LTD121EA3P | TOSHIBA | 12.1 | 1024×768 |
| LTD121ECBP | TOSHIBA | 12.1 | 1024×768 |
| LTD121EDDX | TOSHIBA | 12.1 | 1024×768 |
| LTD121EQ3B | TOSHIBA | 12.1 | 1280×800 |
| LTD121EWEK | TOSHIBA | 12.1 | 1280×800 |
| LTD121EWPF | TOSHIBA | 12.1 | 1280×800 |
| LTD121EWVB | TOSHIBA | 12.1 | 1280×800 |
| LTD121EX9D | TOSHIBA | 12.1 | 1280×768 |
| LTD121KA0S | TOSHIBA | 12.1 | 1024×768 |
| B116XW03 V0 | AUO | 11.6 | 1366×768 |
| B141XN03 V0 | AUO | 14.1 | 1024×768 |
| BT140GW02 V.0 | Innolux | 14.0 | 1366×768 |
| HT14X13-102 | HYDIS | 14.1 | 1024×768 |
| LP141WP2-TPA1 | LG Display | 14.1 | 1440×900 |
| LP171WP4-TLP1 | LG Display | 17.1 | 1440×900 |
| LP171WU6-TLB1 | LG Display | 17.1 | 1920×1200 |
| LTM11C307 | TOSHIBA | 11.3 | 1024×768 |
| LTN154X3-L03 | Samsung | 15.4 | 1280×800 |
| LTN170CT08-D01 | Samsung | 17.0 | 1920×1200 |
