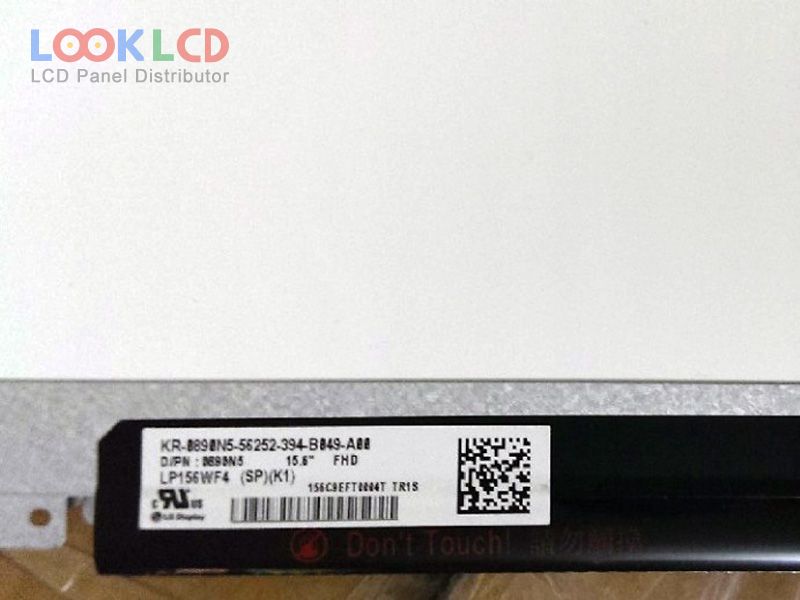

| Varenummer | LP156WF4-SPK1 |
| Mærke | LG Display |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | LG Display |
| panel model | LP156WF4-SPK1 18 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | AH-IPS, Normally Black, Transmissive |
| aktivt område | 344.16×193.59 mm |
| omrids | 359.5×223.8×3.2 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Antiglare |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | eDP (2 Lanes), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
