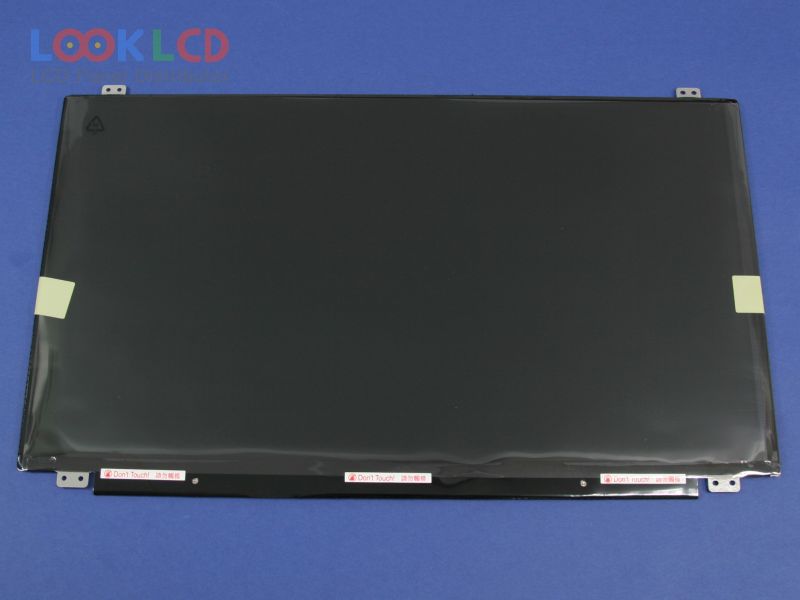

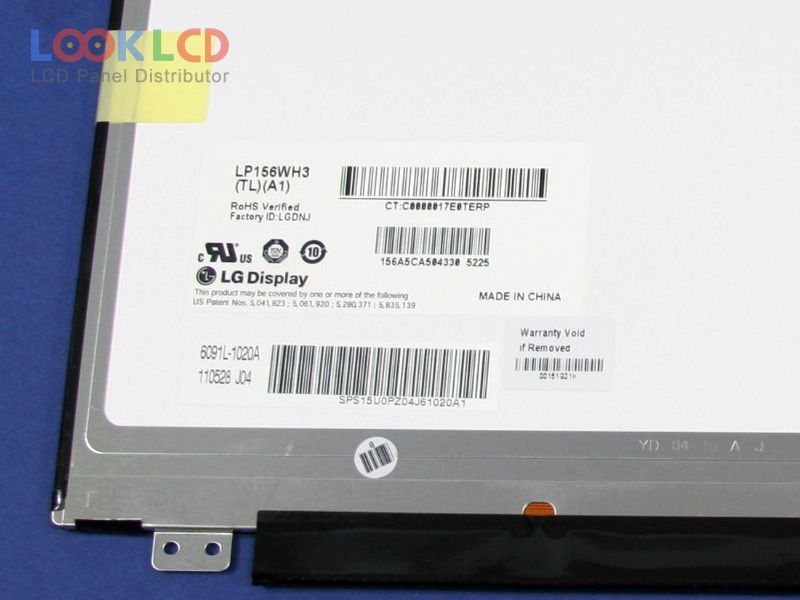

| Varenummer | LP156WH3-TLA1 |
| Mærke | LG Display |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP156WH3-TLA1 21 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 359.5×223.4×3.8 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S6PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP156WD1-TLA2 | LG Display | 15.6 | 1600×900 |
| LP156WD1-TLD3 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TLC1 | LG Display | 15.6 | 1920×1080 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TPB1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLT2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPP1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPG1 | LG Display | 15.6 | 1366×768 |
| B121EW03 V8 | AUO | 12.1 | 1280×800 |
| CLAA133WB01A | CPT | 13.3 | 1366×768 |
| LP125WF2-SPB2 | LG Display | 12.5 | 1920×1080 |
| LP133WH1-TLA2 | LG Display | 13.3 | 1366×768 |
| LP140WX1-TL02 | LG Display | 14.0 | 1280×768 |
| LP156WF7-SPB2 | LG Display | 15.6 | 1920×1080 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LQ170M1LA12 | SHARP | 17.0 | 1920×1200 |
| LTN141AT03-301 | Samsung | 14.1 | 1280×800 |
| N121X5-L06 | Innolux | 12.1 | 1024×768 |
