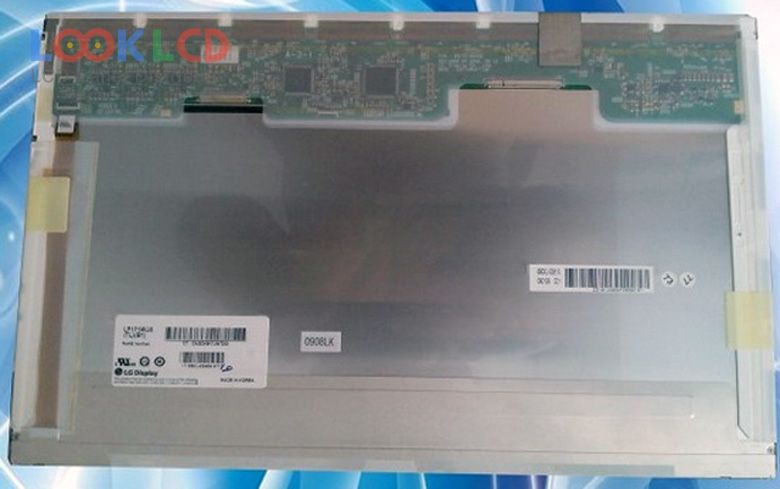

| Varenummer | LP171WU5-TLB1 |
| Mærke | LG Display |
| Størrelse | 17.1 |
| Ansøgning | NBPC |
| Løsning | 1920×1200 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | RGB LED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP171WU5-TLB1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.1 inch |
| løsning | 1920(RGB)×1200 , WUXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 367.2×229.5 mm |
| omrids | 382.2×247.5×7 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE1931110% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | RGB LEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
