| Varenummer | LP171WX2-A4K7 |
| Mærke | LG Display |
| Størrelse | 17.1 |
| Ansøgning | NBPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LP171WX2-A4K7 3 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.1 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 367.2×229.5 mm |
| omrids | 382.2×244.5×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (2H), Antireflection |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Min.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 6/19 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |

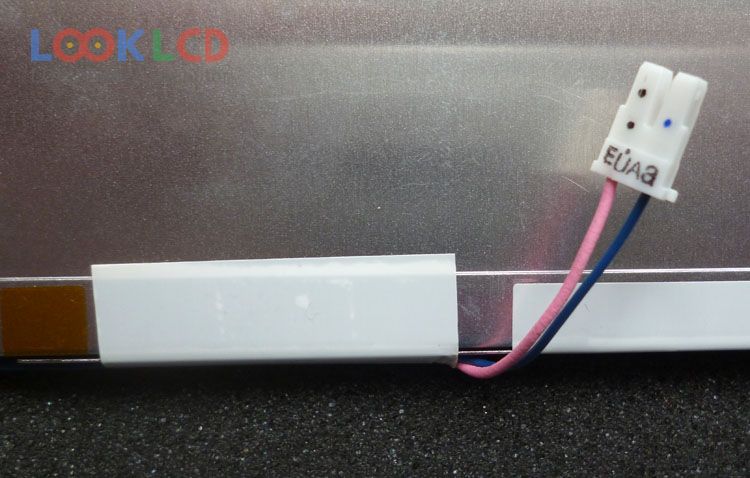

| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
