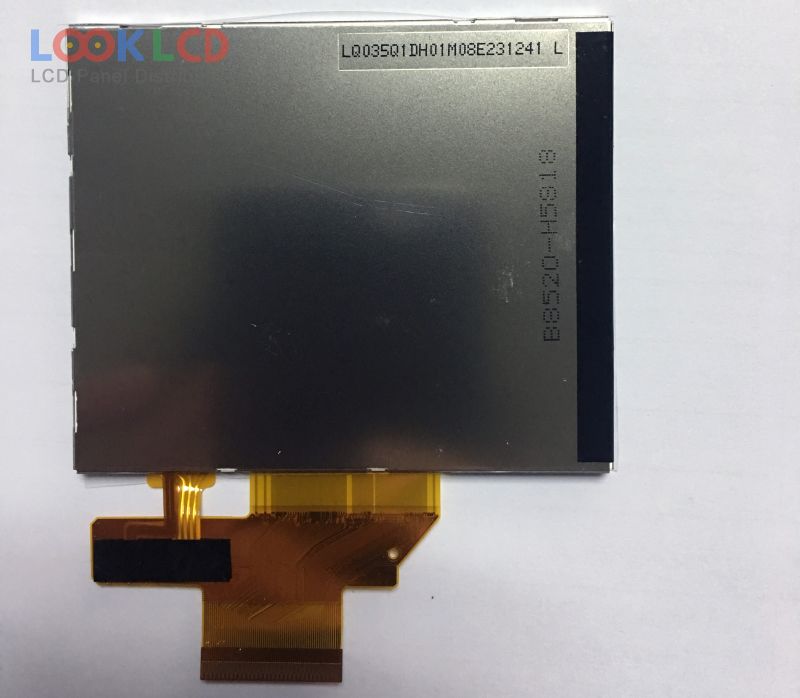

| Varenummer | LQ035Q1DH01 |
| Mærke | SHARP |
| Størrelse | 3.5 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ035Q1DH01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 70.56×52.92 mm |
| omrids | 76.9×63.9×4.7 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30/30 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(VDDIO/VCI) |
| Ansøgning | DSC |
| LQ035NC111 | Innolux | 3.5 | 320×240 |
| LQ035Q1DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ035Q1DG04 | SHARP | 3.5 | 320×240 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| LQ035Q2DD56 | SHARP | 3.5 | 320×240 |
| LQ035Q5DG01 | SHARP | 3.5 | 320×240 |
| LQ035Q7DB03F | SHARP | 3.5 | 240×320 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| 990000270 | TPO | 2.5 | 320×240 |
| A017CN01 V2 | AUO | 1.7 | 480×240 |
| A027DN03 V5 | AUO | 2.7 | 320×240 |
| A027DN03 V8 | AUO | 2.7 | 320×240 |
| A030DN01 V0 | AUO | 3.0 | 320×240 |
| CLAA030HA22DE | CPT | 3.0 | 960×480(dot) |
| DLC0350FVG-5 | Other | 3.5 | 320×240 |
| L3F04X-80300C | Epson | 0.48 | 1024×768 |
| PA025XSF | E Ink | 2.5 | 480×234 |
| TM027CDH02 | Tianma | 2.7 | 320×240 |
