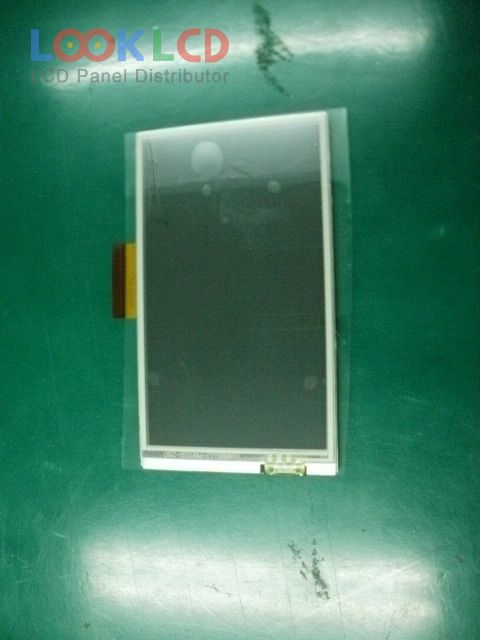

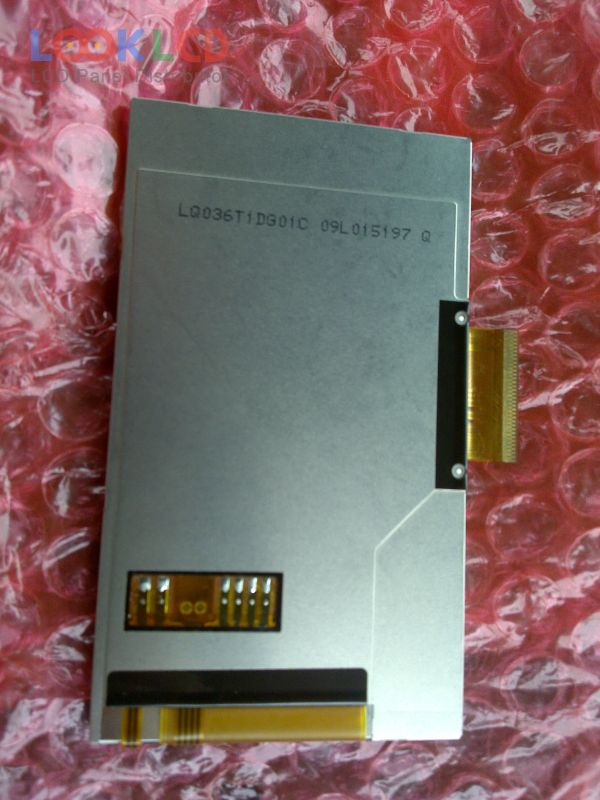

| Varenummer | LQ036T1DG01 |
| Mærke | SHARP |
| Størrelse | 3.6 |
| Ansøgning | PND |
| Løsning | 272×480 |
| Sammensætning | LCM |
| Lysstyrke | 410 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ036T1DG01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.6 inch |
| løsning | 272(RGB)×480 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 44.472×78.48 mm |
| omrids | 51.8×90 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 410 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 30/30 (Typ.)(Tr/Td) |
| synsvinkel | 40/60/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | Parallel RGB + SPI, 67 pins |
| indgangsspænding | 1.8/2.5V (Typ.)(VDDIO/VCI) |
| Ansøgning | PND |
