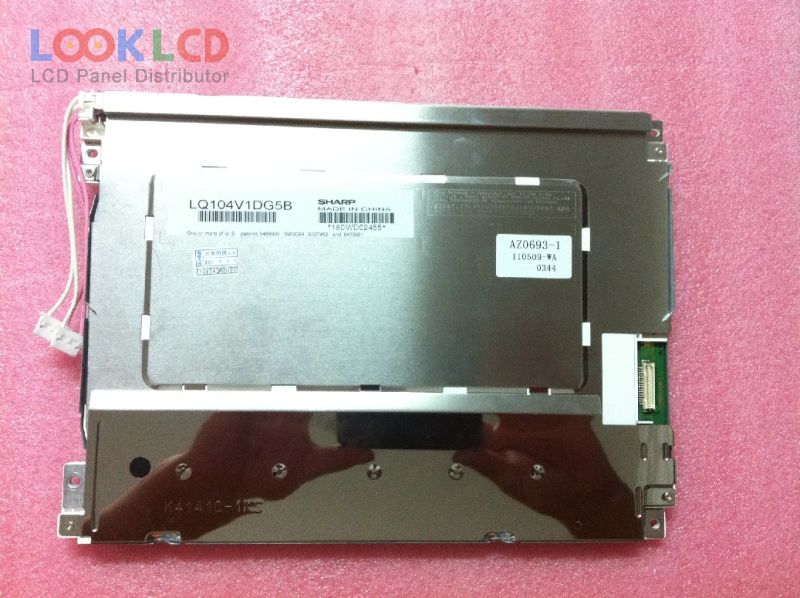

| Varenummer | LQ104V1DG5B |
| Mærke | SHARP |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ104V1DG5B 4 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 246.5×179.4×15.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 10/25 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| indgangsspænding | 3.3/5.0V (Typ.) |
| Ansøgning | IA |
| LQ104S1DG31 | SHARP | 10.4 | 800×600 |
| LQ104S1LG61 | SHARP | 10.4 | 800×600 |
| LQ104S1LG81 | SHARP | 10.4 | 800×600 |
| LQ104V1DC41 | SHARP | 10.4 | 640×480 |
| LQ104V1DG11 | SHARP | 10.4 | 640×480 |
| LQ104V1DG33 | SHARP | 10.4 | 640×480 |
| LQ104V1DG62 | SHARP | 10.4 | 640×480 |
| LQ104V1DG71 | SHARP | 10.4 | 640×480 |
| LQ104V1DW01 | SHARP | 10.4 | 640×480 |
| LQ104V1LG61 | SHARP | 10.4 | 640×480 |
| AA057VG12 | Mitsubishi | 5.7 | 640×480 |
| AA121SL01 | Mitsubishi | 12.1 | 800×600 |
| AA190EA01 | Mitsubishi | 19.0 | 1280×1024 |
| G104VN01 V0 | AUO | 10.4 | 640×480 |
| LQ084S3LG03 | SHARP | 8.4 | 800×600 |
| LQ104S1DG31 | SHARP | 10.4 | 800×600 |
| LQ64D34 | SHARP | 6.4 | 640×480 |
| NL10276BC30-39 | NLT | 15.0 | 1024×768 |
| SX19V007 | KOE | 7.5 | 640×480 |
| UG-2864KSWLG01 | WiseChip | 1.3 | 128×64 |
