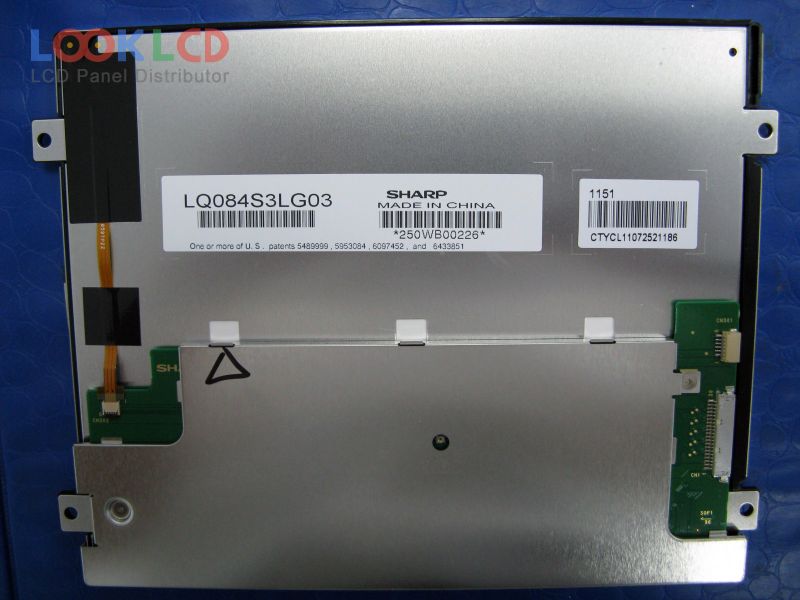

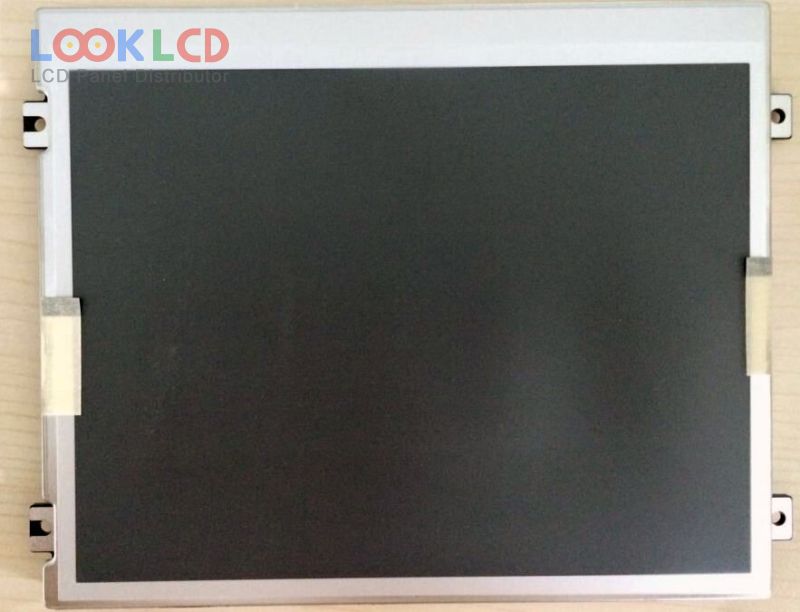

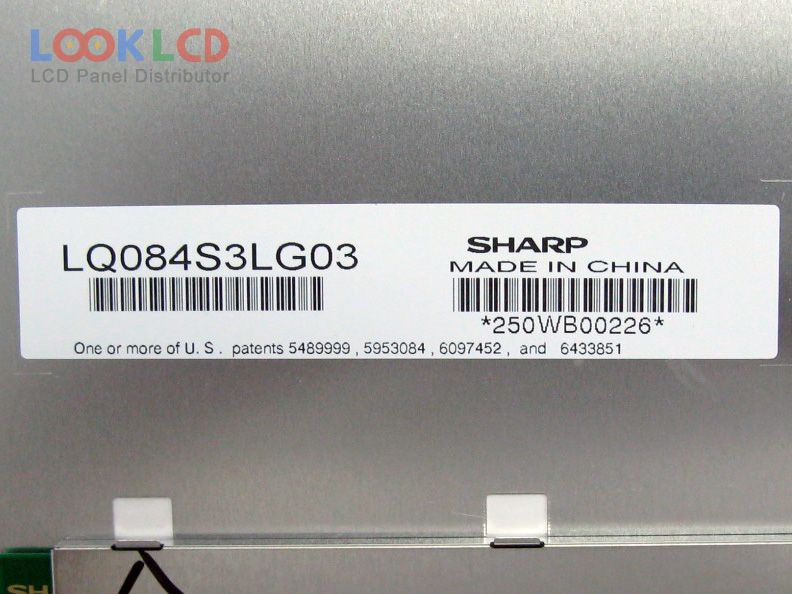

| Varenummer | LQ084S3LG03 |
| Mærke | SHARP |
| Størrelse | 8.4 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 330 |
| CR | 450:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SHARP |
| panel model | LQ084S3LG03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.4 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 170.4×127.8 mm |
| omrids | 199.5×154×12.45 mm |
| overflade | Antiglare, Hard coating (2H) |
| lysstyrke | 330 cd/m² (Typ.) |
| kontrastforhold | 450:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 8-bit) |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/60/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
