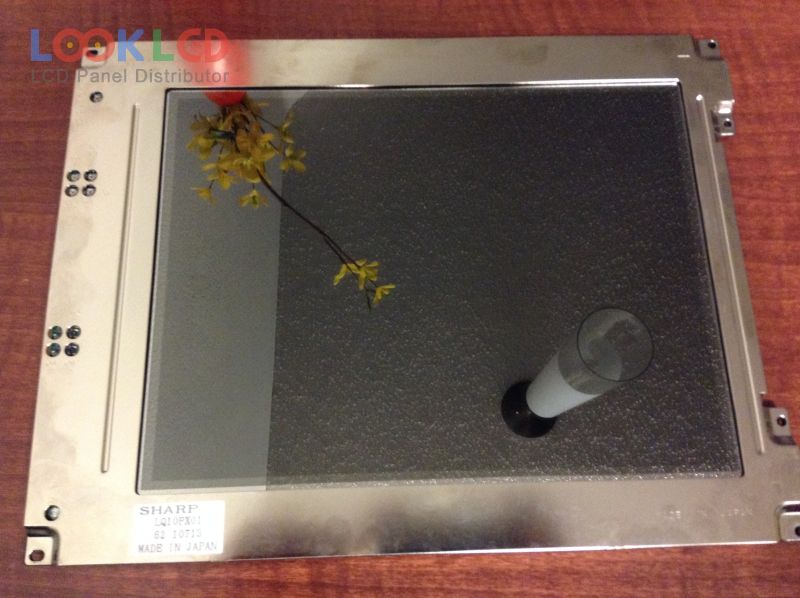

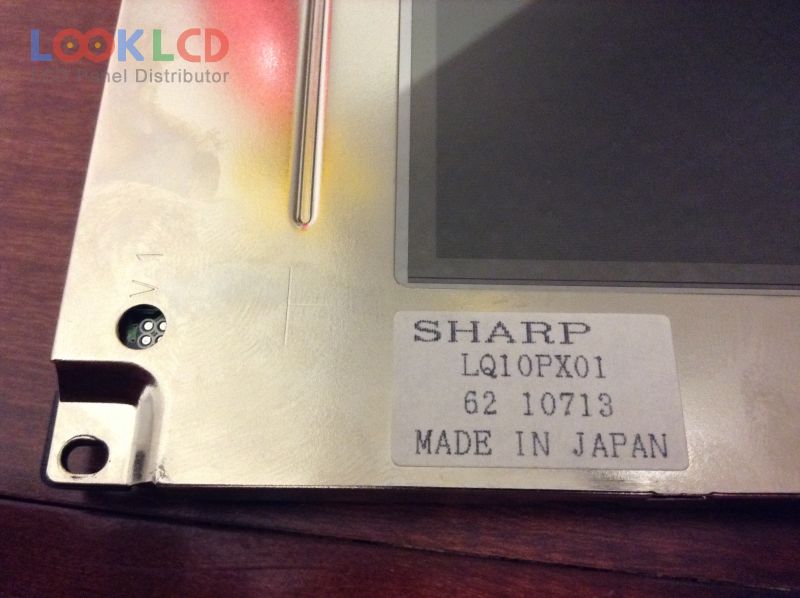

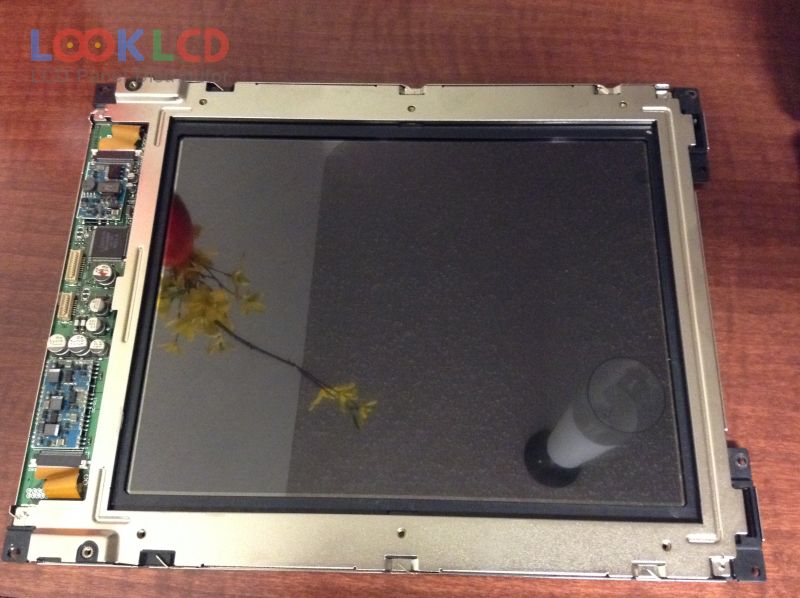

| Varenummer | LQ10PX01 |
| Mærke | SHARP |
| Størrelse | 10.4 |
| Ansøgning | PRO |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 0 |
| CR | 60:1 |
| Farver | 262K |
| Baggrundsbelysning | No B/L |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ10PX01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.968×158.976 mm |
| omrids | 283×215.6 mm |
| overflade | |
| lysstyrke | 0 cd/m² |
| kontrastforhold | 60:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/30/10 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | No B/L |
| signal interface | Parallel RGB (1 ch, 6-bit), 36 pins |
| indgangsspænding | 5.0/12.0V (Typ.)(VCC/VDD) |
| Ansøgning | PRO |
| LQ101K1LY02 | SHARP | 10.1 | 1280×800 |
| LQ104S1DG31 | SHARP | 10.4 | 800×600 |
| LQ104S1DG34 | SHARP | 10.4 | 800×600 |
| LQ104S1LG61 | SHARP | 10.4 | 800×600 |
| LQ104V1DG51 | SHARP | 10.4 | 640×480 |
| LQ104V1DG59 | SHARP | 10.4 | 640×480 |
| LQ10D010 | SHARP | 10.4 | 640×480 |
| LQ10D341 | SHARP | 10.4 | 640×480 |
| LQ10D42 | SHARP | 10.4 | 640×480 |
| LQ10PX01 | SHARP | 10.4 | 1024×768 |
| L3C07U-75G00 | Epson | 0.74 | 1920×1080 |
| L3C07W-A5G10 | Epson | 0.76 | 1920×1200 |
| L3C09X-82G00 | Epson | 0.95 | 1280×800 |
| L3P06X-85G20 | Epson | 0.63 | 1024×768 |
| L3P10Y-81G00 | Epson | 0.96 | 1400×1050 |
| LCX036AMT | SONY | 1.8 | 1604×1204 |
| LQ10PX01 | SHARP | 10.4 | 1024×768 |
| LQ31E05 | SHARP | 3.0 | 383×234 |
| PM058OX1 | E Ink | 5.8 | 1280×768 |
