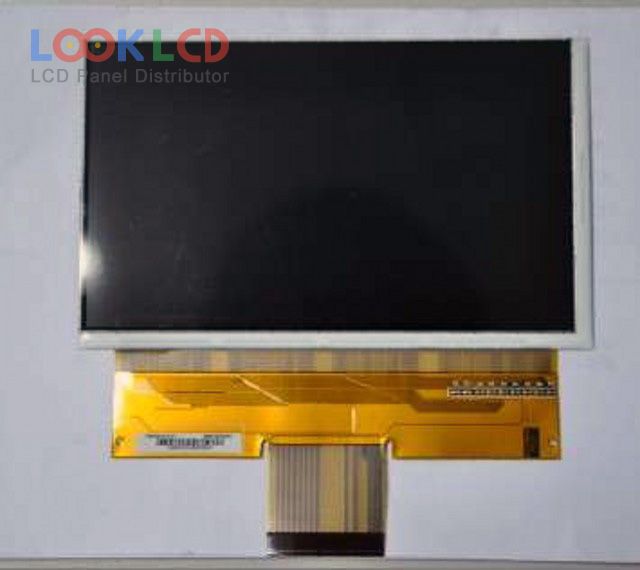

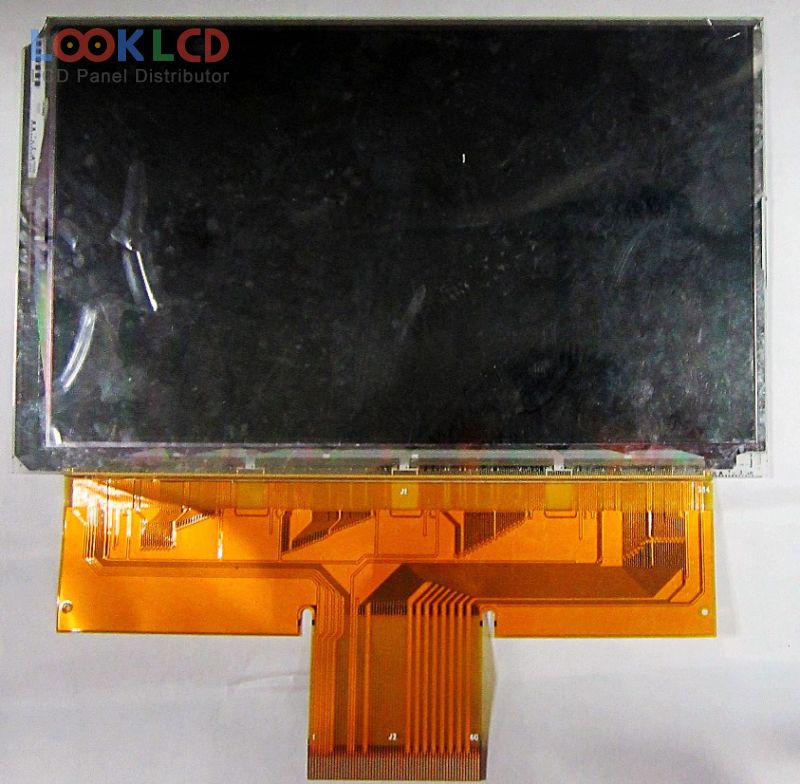

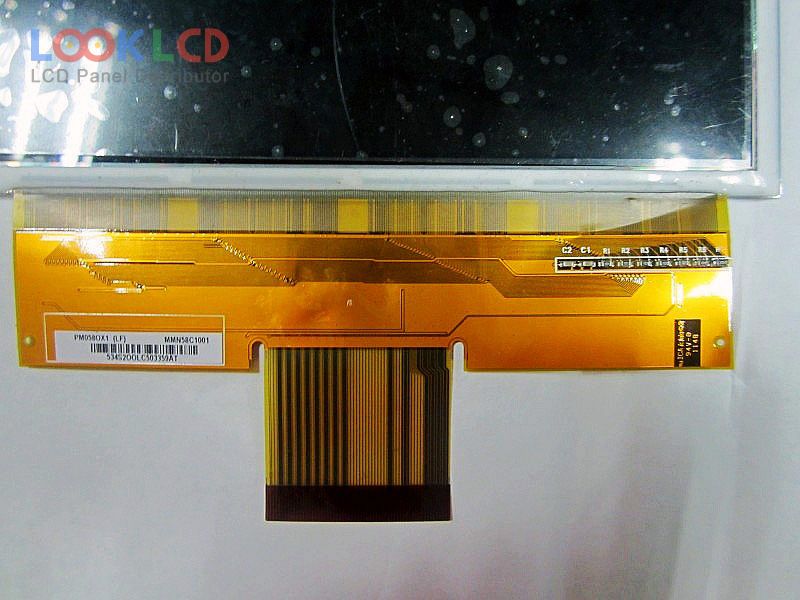

| Varenummer | PM058OX1 |
| Mærke | E Ink |
| Størrelse | 5.8 |
| Ansøgning | PRO |
| Løsning | 1280×768 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | No B/L |
| Interface | Mini LVDS |
| panel mærke | PVI |
| panel model | PM058OX1 |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 5.8 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 126.72×74.88 mm |
| omrids | 137.488×84.7 mm |
| overflade | |
| glas dybde | 0.60+0.60 mm |
| transmissivitet | 6.0% (Typ.)(with Polarizer) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 15/25 (Typ.)(Tr/Td) |
| synsvinkel | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | Mini LVDS, 60 pins |
| indgangsspænding | 3.3/3.3/12.5/18.0/-6.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
| Ansøgning | PRO |
