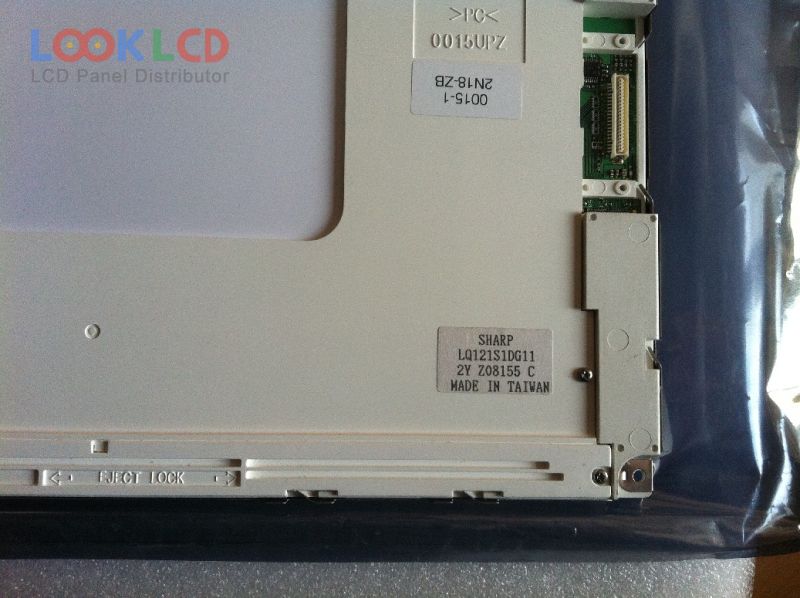

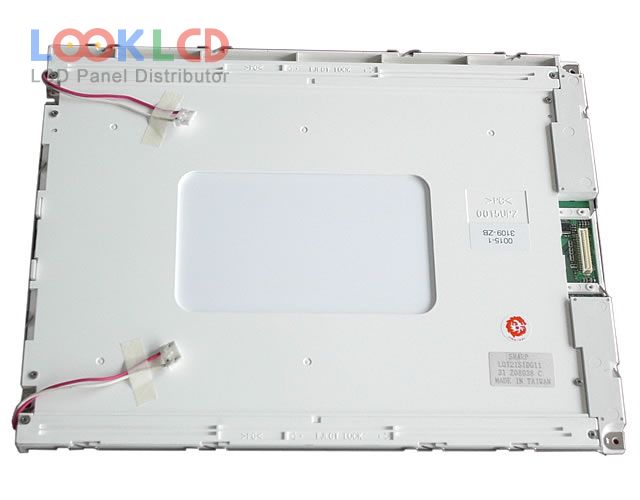

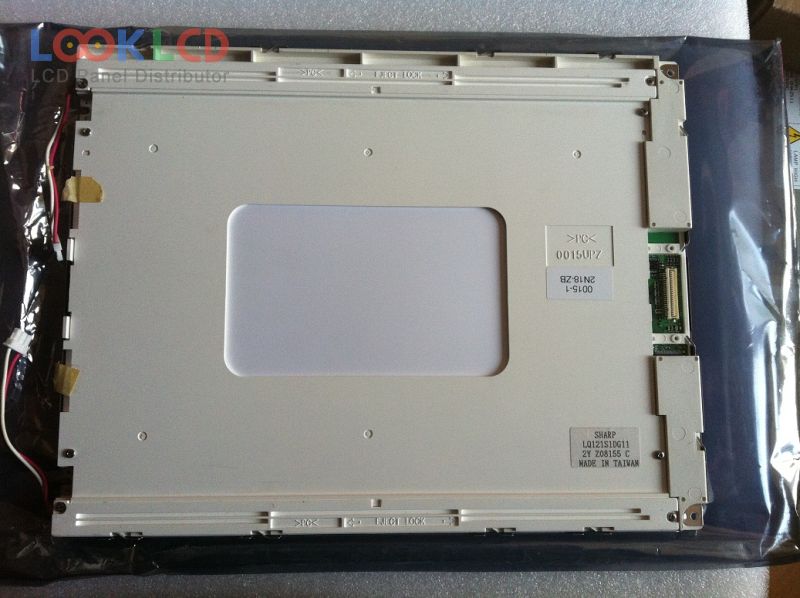

| Varenummer | LQ121S1DG11 |
| Mærke | SHARP |
| Størrelse | 12.1 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ121S1DG11 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 246×184.5 mm |
| omrids | 290×225×13.7 mm |
| overflade | Antiglare (Haze 28%), Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 15/30 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 41 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(VCC) |
| Ansøgning | IA |
| LQ121S1DG21 | SHARP | 12.1 | 800×600 |
| LQ121S1DG21A | SHARP | 12.1 | 800×600 |
| LQ121S1DG31 | SHARP | 12.1 | 800×600 |
| LQ121S1DG61 | SHARP | 12.1 | 800×600 |
| LQ121S1LG44 | SHARP | 12.1 | 800×600 |
| LQ121S1LG45 | SHARP | 12.1 | 800×600 |
| LQ121S1LG51 | SHARP | 12.1 | 800×600 |
| LQ121S1LG72 | SHARP | 12.1 | 800×600 |
| LQ121S1LG79 | SHARP | 12.1 | 800×600 |
| LQ121X3LH01 | SHARP | 12.1 | 1024×768 |
| AA104SL02-DE1 | Mitsubishi | 10.4 | 800×600 |
| AM480272H3TMQW-W2H | AMPIRE | 4.3 | 480×272 |
| EL640.480-AA1 | Lumineq | 10.4 | 640×480 |
| G070Y3-T01 | Innolux | 7.0 | 800×480 |
| KS3224ASTT-FW-X2 | Kyocera | 5.7 | 320×240 |
| LM-CG53-22NDK | SANYO | 10.4 | 640×480 |
| LM290WW2-SSA1 | LG Display | 29.0 | 2560×1080 |
| LQ104S1DG31 | SHARP | 10.4 | 800×600 |
| LQ235D1LW03 | SHARP | 23.6 | 1920×1080 |
| NL8060BC31-20 | NLT | 12.1 | 800×600 |
