| Varenummer | LQ140M1JW32 |
| Mærke | Sharp |
| Størrelse | 14.0 |
| Ansøgning | Laptop |
| Løsning | 1920×1080 |
| Sammensætning | LCM , Oxide TFT-LC |
| Lysstyrke | |
| CR | 1500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| fabrikant | Sharp |
| skærmstørrelse | 14.0 inch |
| pixel antal | 1920(RGB)×1080 (FHD) 157PPI |
| aktivt område (mm) | 309.312 × 173.988 (H×V) |
| rammeareal (mm) | - |
| luminans | 300 cd/m² (Typ.) |
| synsvinkel | 89/89/89/89 (Min.)(CR≥10) |
| god udsigt kl | Symmetry |
| farvedybde | 16.7M 100% sRGB |
| konturform | Slim (PCBA Bent, T≤3.0mm) |
| opdateringshastighed | 60Hz |
| signaltype | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

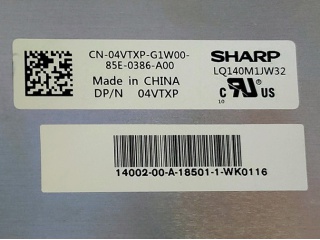

| modelnavn | LQ140M1JW32 (SHP1497) |
| skærmtype | LCM , Oxide TFT-LCD |
| arrangement | RGB Vertical Stripe |
| omrids (mm) | 314.4 × 193.51 × 5.15 (H×V×D) |
| behandling | Antiglare, Hard coating (3H) |
| kontrastforhold | 1500 : 1 (Typ.) (TM) |
| respons | 30 (Typ.)(Tr+Td) ms |
| arbejdstilstand | New Mode2, Normally Black, Transmissive |
| baggrundsbelysning | WLED , 15K hours , With LED Driver |
| anvendes til | Laptop |
| berøringsskærm | Without |
