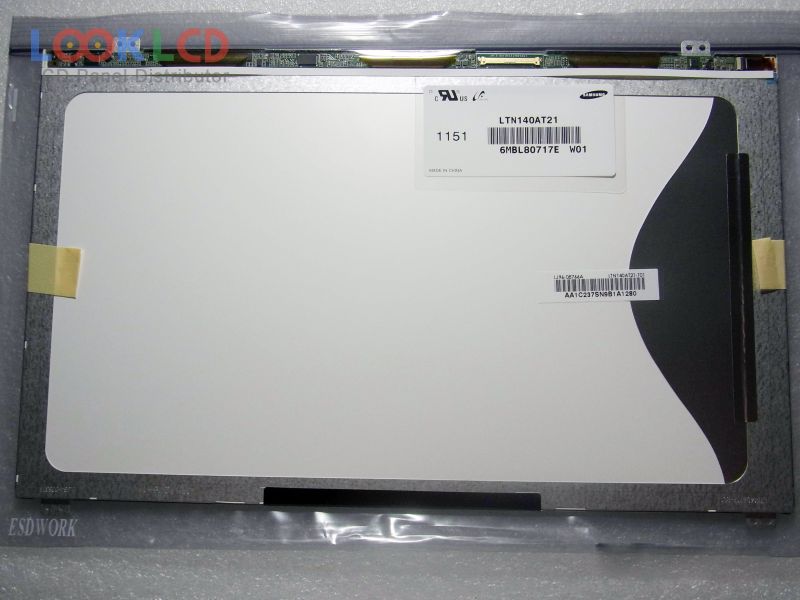

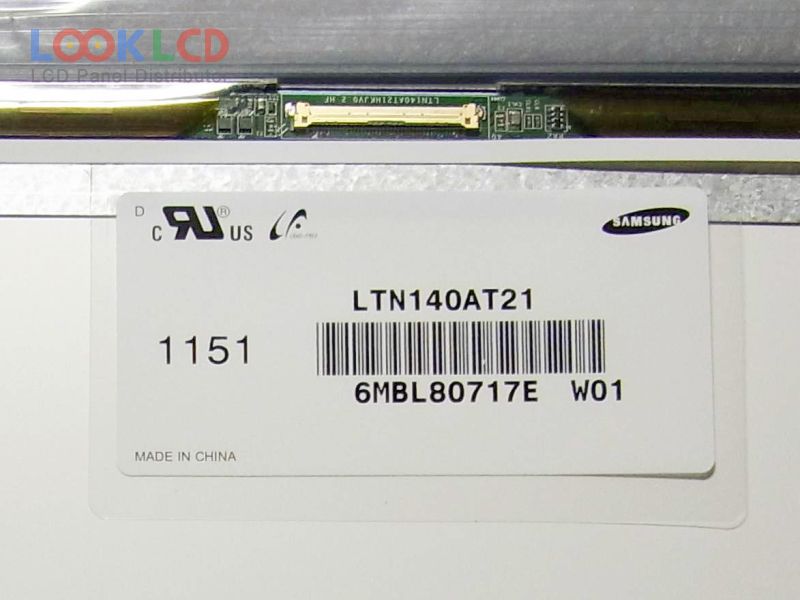

| Varenummer | LTN140AT21-W01 |
| Mærke | Samsung |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN140AT21-W01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| omrids | 323.5×204.9×4 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LTN140AT01-G01 | Samsung | 14.0 | 1366×768 |
| LTN140AT02-G01 | Samsung | 14.0 | 1366×768 |
| LTN140AT07-306 | Samsung | 14.0 | 1366×768 |
| LTN140AT07-T01 | Samsung | 14.0 | 1366×768 |
| LTN140AT18-201 | Samsung | 14.0 | 1366×768 |
| LTN140AT19-201 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-002 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-B01 | Samsung | 14.0 | 1366×768 |
| LTN140AT22-W02 | Samsung | 14.0 | 1366×768 |
| LTN140AT26-L01 | Samsung | 14.0 | 1366×768 |
| B140XTN03.2 | AUO | 14.0 | 1366×768 |
| B156RW01 V1 | AUO | 15.6 | 1600×900 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| HSD150PX16-A | HannStar | 15.0 | 1024×768 |
| LP121X04-A2 | LG Display | 12.1 | 1024×768 |
| LP133WH1-TLA2 | LG Display | 13.3 | 1366×768 |
| LP141WX3-TLN1 | LG Display | 14.1 | 1280×800 |
| LTN133YL01-F01 | Samsung | 13.3 | 3200×1800 |
| LTN156AT01-U01 | Samsung | 15.6 | 1366×768 |
| N140B6-L01 | Innolux | 14.0 | 1366×768 |
