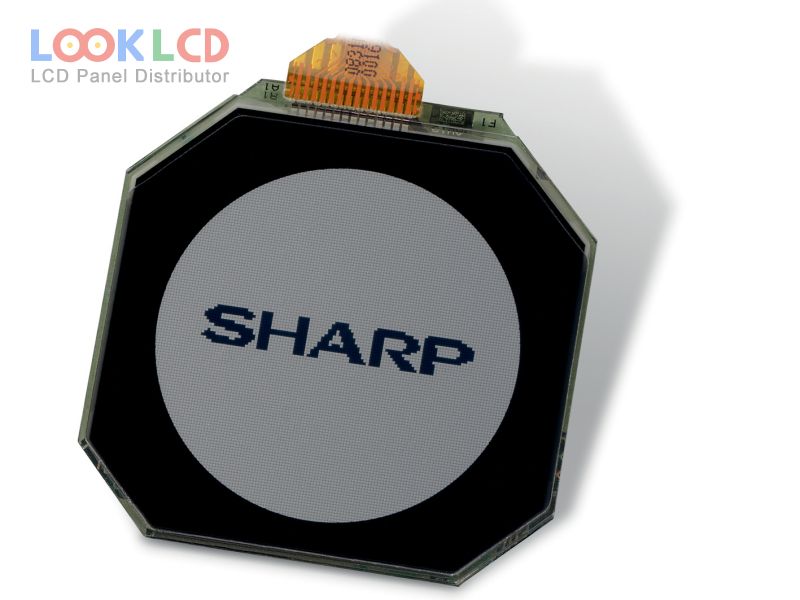

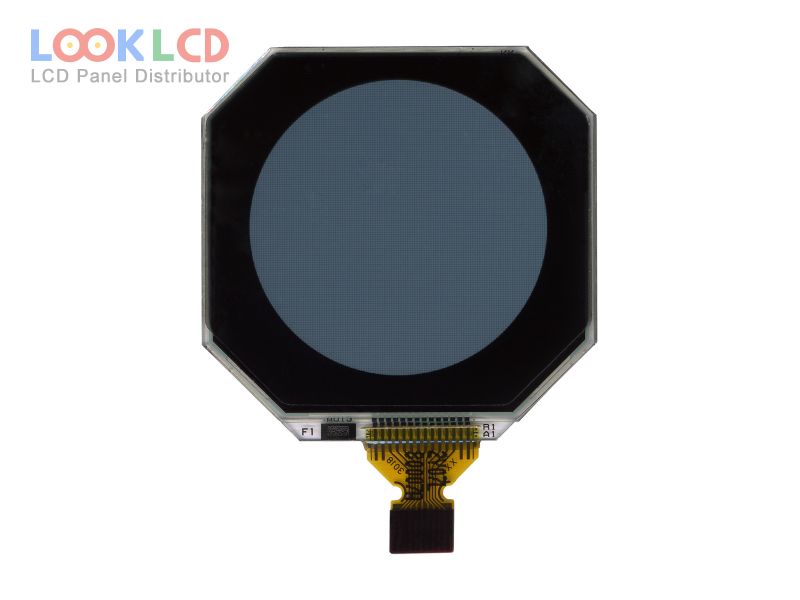

| Varenummer | LS010B7DH01 |
| Mærke | SHARP |
| Størrelse | 0.99 |
| Ansøgning | SW |
| Løsning | 128×128 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | Monochrome |
| Baggrundsbelysning | No B/L |
| Interface | SPI |
| panel mærke | SHARP |
| panel model | LS010B7DH01 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 0.99 inch |
| løsning | 128×128 |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 25.024×25.024 mm |
| omrids | 33×33.4×1.84 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | |
| kontrastforhold | 14:1 (Typ.)(Reflective) |
| vise farver | Monochrome (1-bit) |
| responstid | 10/20 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/60/60 (Min.)(CR≥3)(L/R/U/D) |
| lampe type | No B/L |
| signal interface | SPI, 10 pins |
| indgangsspænding | 5.0/5.0V (Typ.)(VDD/VDDA) |
| rohs: | |
| Ansøgning | SW |
