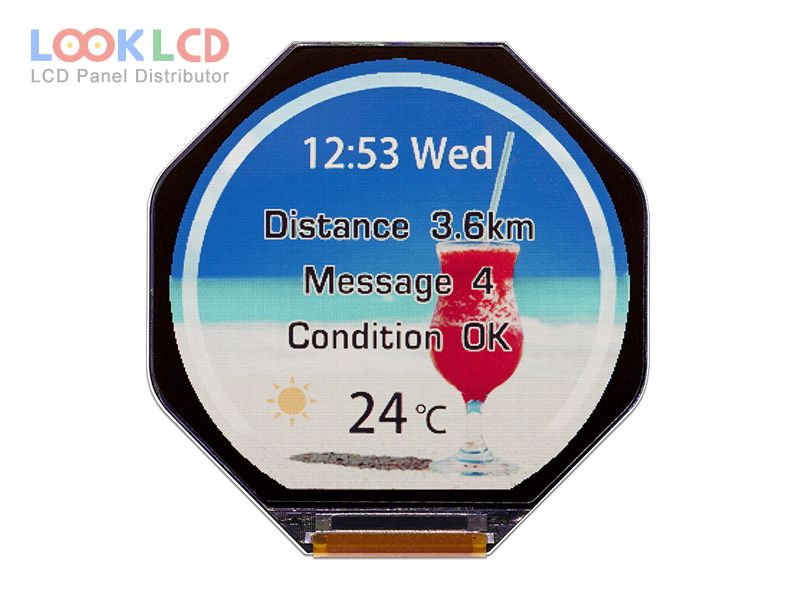

| Varenummer | LPM013M091A |
| Mærke | JDI |
| Størrelse | 1.34 |
| Ansøgning | SW |
| Løsning | 320×300 |
| Sammensætning | LCM |
| Lysstyrke | 10 |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | JDI |
| panel model | LPM013M091A |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 1.34 inch |
| løsning | 320(RGB)×300 |
| visningstilstand | ECB, Normally Black, Transflective |
| aktivt område | 34.08×31.95 mm |
| omrids | 37.28×38.18×1.75 mm |
| overflade | Hard coating (2H) |
| lysstyrke | 10 cd/m² (Typ.) |
| kontrastforhold | 20:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit), CIE193123% |
| responstid | 3/6 (Typ.)(Tr/Td) |
| synsvinkel | 60/65/65/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsWLEDWithout Driver |
| signal interface | MIPI (1 data lane), 23 pins |
| indgangsspænding | 1.8/3.1V (Typ.)(VDDI/VCI) |
| Ansøgning | SW |
| LPM010R030B | JDI | 0.99 | 180×180 |
| LPM012A154A | JDI | 1.2 | 218×218 |
| LPM013M091A | JDI | 1.34 | 320×300 |
| H139BLN01.2 | AUO | 1.39 | 400×400 |
| LG 1.3 Circular P-OLED | LG Display | 1.3 | 320×320 |
| LPM010R030B | JDI | 0.99 | 180×180 |
| LS010B7DH01 | SHARP | 0.99 | 128×128 |
| LS013B7DH06 | SHARP | 1.33 | 128×128 |
| OEL9M0082-R-E | Other | 1.1 | 128×128 |
| OEL9M1004-L4-E | Other | 1.5 | 128×128 |
| OEL9M1010-G-E | Other | 0.95 | 96×64 |
| RGS13128096BH000 | RiTdisplay | 1.3 | 128×96 |
| RGS18160128FH007 | RiTdisplay | 1.8 | 160×128 |
