| Varenummer | LS050T1SX10 |
| Mærke | SHARP |
| Størrelse | 5.0 |
| Ansøgning | MPH |
| Løsning | 1080×1920 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | SHARP |
| panel model | LS050T1SX10 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 1080(RGB)×1920 , FHD |
| visningstilstand | New Mode2, Normally Black, Transmissive |
| aktivt område | 61.641×109.584 mm |
| omrids | 64.041×116.224×1.21 mm |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193184% |
| responstid | |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 6S2PWLEDWithout Driver |

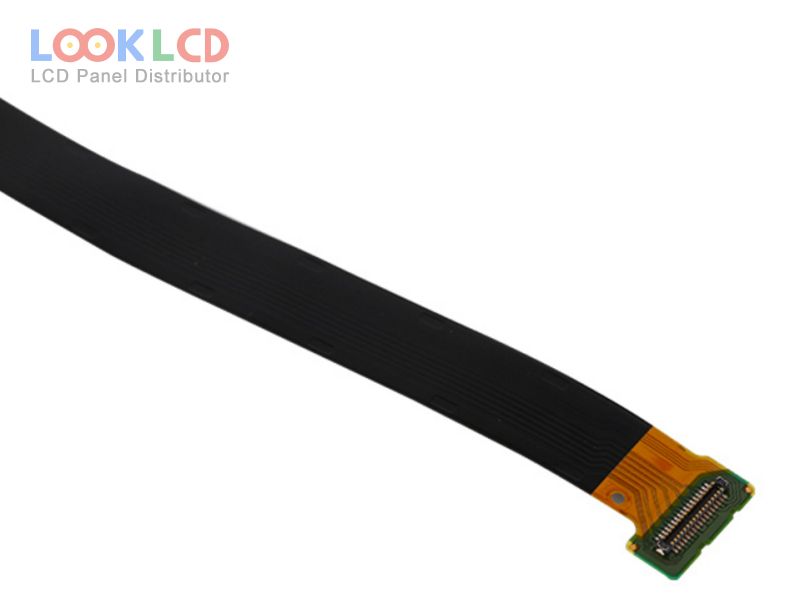

| signal interface | MIPI (4 data lanes), 34 pins |
| indgangsspænding | 1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN) |
| Ansøgning | MPH |
