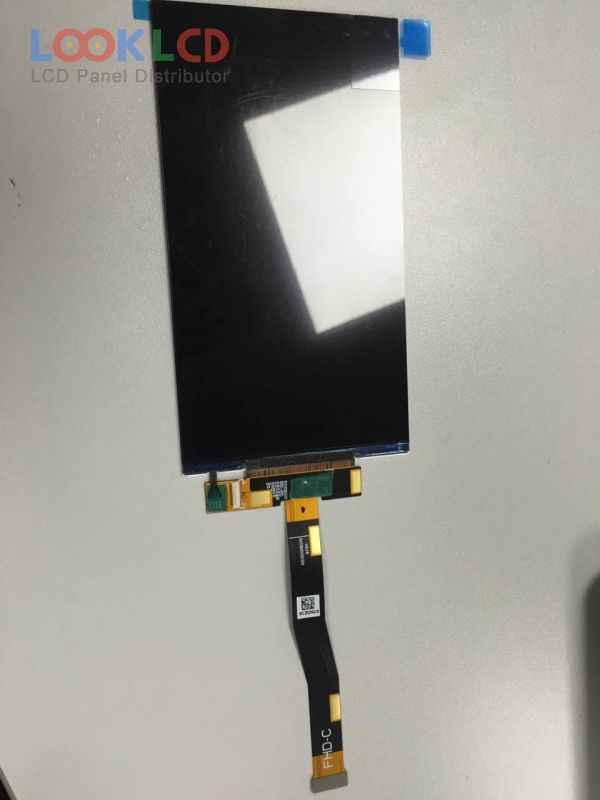

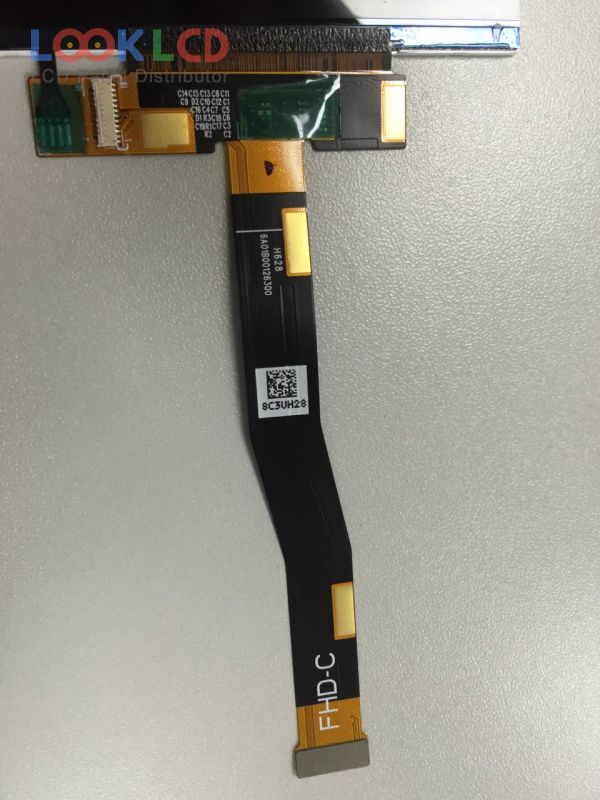

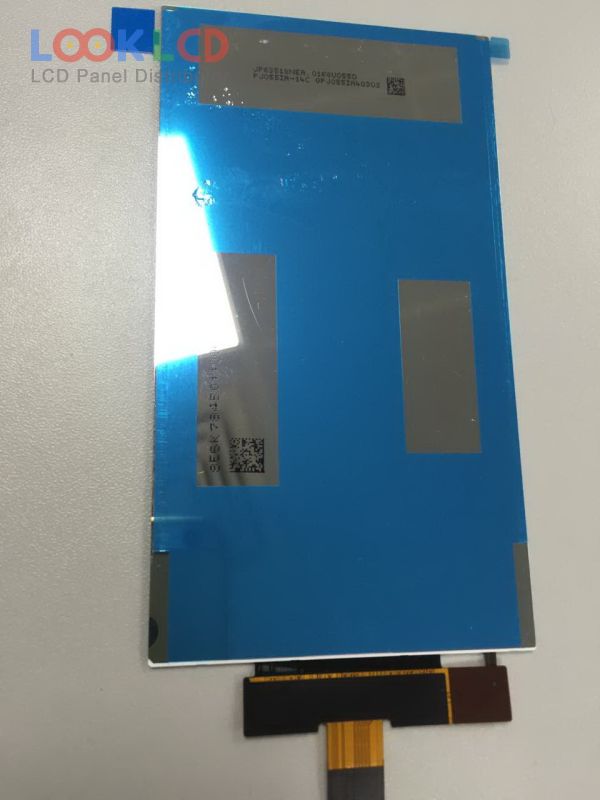

| Varenummer | PJ055IA-14C |
| Mærke | Innolux |
| Størrelse | 5.5 |
| Ansøgning | MPH |
| Løsning | 1080×1920 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | INNOLUX |
| panel model | PJ055IA-14C |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.5 inch |
| løsning | 1080(RGB)×1920 , FHD |
| visningstilstand | AAS, Normally Black, Transmissive |
| aktivt område | 68.04×120.96 mm |
| omrids | 70.44×70.4413×1.4 mm |
| overflade | Glare (Haze 0%), Hard coating |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193171% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 7S2PWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 40 pins |
| indgangsspænding | 1.8/5.7/-5.7V (Typ.)(IOVCC/VSP/VSN) |
| Ansøgning | MPH |
