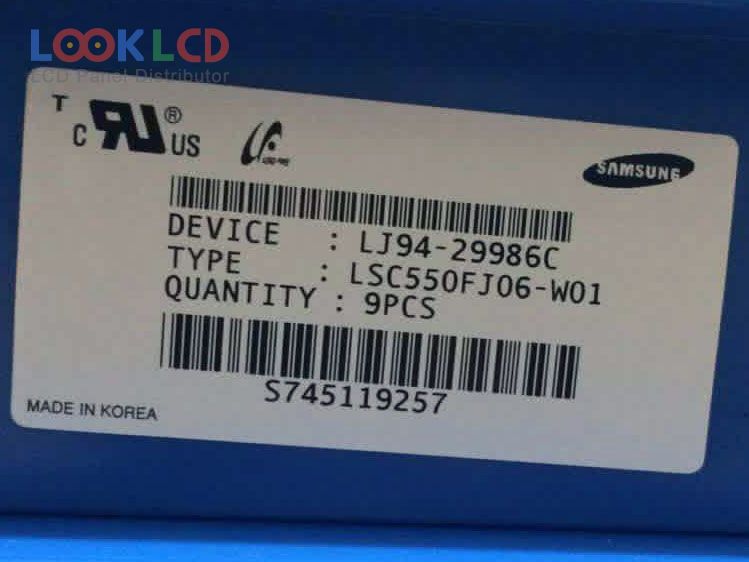

| Varenummer | LSC550FJ06-W01 |
| Mærke | Samsung |
| Størrelse | 55 |
| Ansøgning | LCTV |
| Løsning | 3840×2160 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 3500:1 |
| Farver | 1.07B |
| Baggrundsbelysning | No B/L |
| Interface | V-by-One |
| panel mærke | SAMSUNG |
| panel model | LSC550FJ06-W01 |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 55 inch |
| løsning | 3840(RGB)×2160 , UHD |
| visningstilstand | SPVA, Normally Black, Transmissive |
| aktivt område | 1209.6×680.4 mm |
| omrids | 1219.6×690.5 mm |
| overflade | Glare (Haze 0%), Hard coating (2H), Antireflection |
| glas dybde | 0.60+0.60 mm |
| transmissivitet | 3.2% (Typ.)(with Polarizer) |
| kontrastforhold | 3500:1 (Typ.) |
| vise farver | 1.07B (8-bit + Dithering), sRGB99% |
| responstid | 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 120Hz |
| signal interface | V-by-One 16 lane, 92 pins |
| indgangsspænding | 12.0V (Typ.) |
