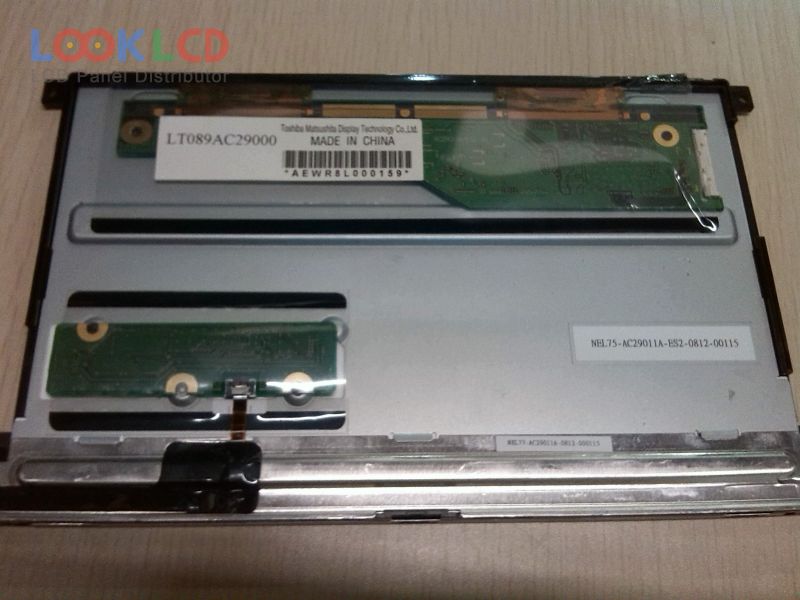

| Varenummer | LT089AC29000 |
| Mærke | TOSHIBA |
| Størrelse | 8.9 |
| Ansøgning | IA |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | Toshiba Mobile Display |
| panel model | LT089AC29000 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 8.9 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | |
| aktivt område | 193.92×116.352 mm |
| omrids | 223.5×134.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 400 : 1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 11.1/8.5 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| rohs: | |
| Ansøgning | IA |
