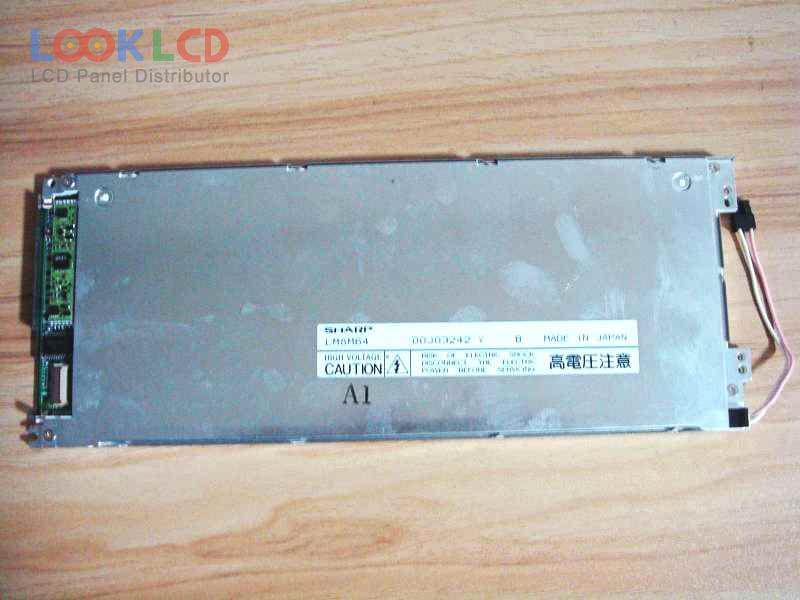

| Varenummer | LM8M64 |
| Mærke | SHARP |
| Størrelse | 8.1 |
| Ansøgning | IA |
| Løsning | 640×240 |
| Sammensætning | LCM |
| Lysstyrke | 80 |
| CR | 50:1 |
| Farver | Color |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | SHARP |
| panel model | LM8M64 |
| paneltype | CSTN-LCD , LCM |
| panelstørrelse | 8.1 inch |
| løsning | 640(RGB)×240 , HVGA |
| visningstilstand | STN, Normally Black, Transmissive |
| aktivt område | 191.98×71.98 mm |
| omrids | 225.4×87.4 mm |
| overflade | |
| lysstyrke | 80 cd/m² (Typ.) |
| kontrastforhold | 50:1 (Typ.) |
| vise farver | Color |
| responstid | 270/80 (Typ.)(Tr/Td) |
| synsvinkel | |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
