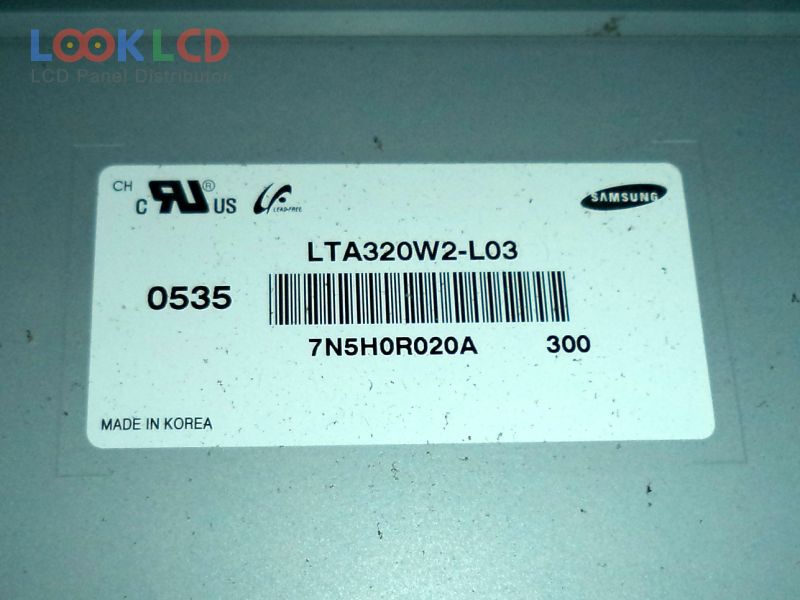

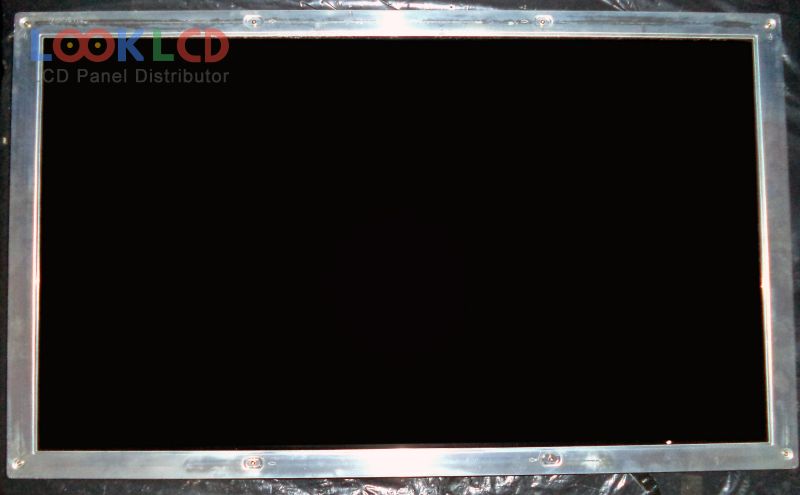

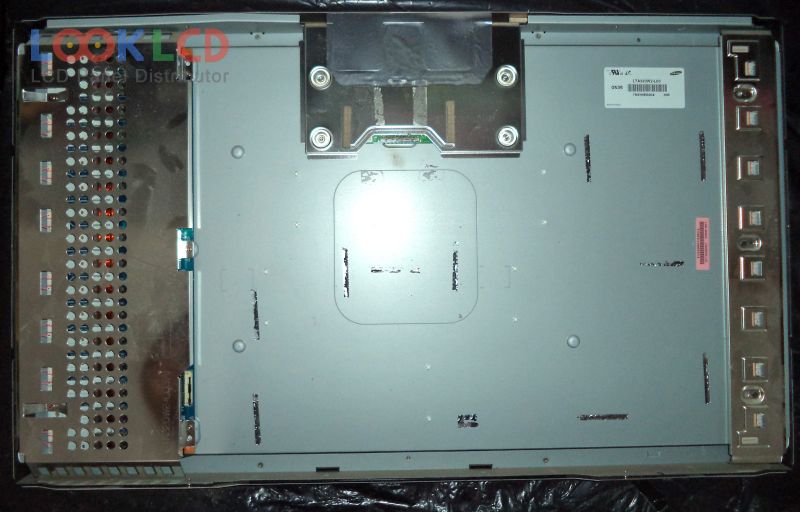

| Varenummer | LTA320W2-L03 |
| Mærke | Samsung |
| Størrelse | 31.5 |
| Ansøgning | LCTV |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTA320W2-L03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 31.5 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | APVA, Normally Black, Transmissive |
| aktivt område | 697.685×392.256 mm |
| omrids | 760×450 mm |
| overflade | Antiglare (Haze 40%), Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 8/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 16 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | LCTV |
| LTA320AN01-C | Samsung | 31.5 | 1366×768 |
| LTA320AN01-W | Samsung | 31.5 | 1366×768 |
| LTA320AP02 | Samsung | 31.5 | 1366×768 |
| LTA320AP05 | Samsung | 31.5 | 1366×768 |
| LTA320AP16 | Samsung | 31.5 | 1366×768 |
| LTA320AP18 | Samsung | 31.5 | 1366×768 |
| LTA320AP32 | Samsung | 31.5 | 1366×768 |
| LTA320HA02 | Samsung | 31.5 | 1920×1080 |
| LTA320HN02-W | Samsung | 31.5 | 1920×1080 |
| LTA320HN04-W | Samsung | 31.5 | 1920×1080 |
| LC260WUN-SBA1 | LG Display | 26.0 | 1920×1080 |
| LC320DXJ-SFK1 | LG Display | 31.5 | 1366×768 |
| LC420EUJ-SFK2 | LG Display | 42 | 1920×1080 |
| LC430EUE-FHM2 | LG Display | 43 | 1920×1080 |
| LC470EUD-SDF1 | LG Display | 47 | 1920×1080 |
| LC470EUN-FEF1 | LG Display | 47 | 1920×1080 |
| LC550WUD-SBM3 | LG Display | 55 | 1920×1080 |
| LTA750FF01 | Samsung | 75 | 3840×2160 |
| T320HVN01.0 | AUO | 31.5 | 1920×1080 |
| T500HVN04.5 CELL | AUO | 50 | 1920×1080 |
