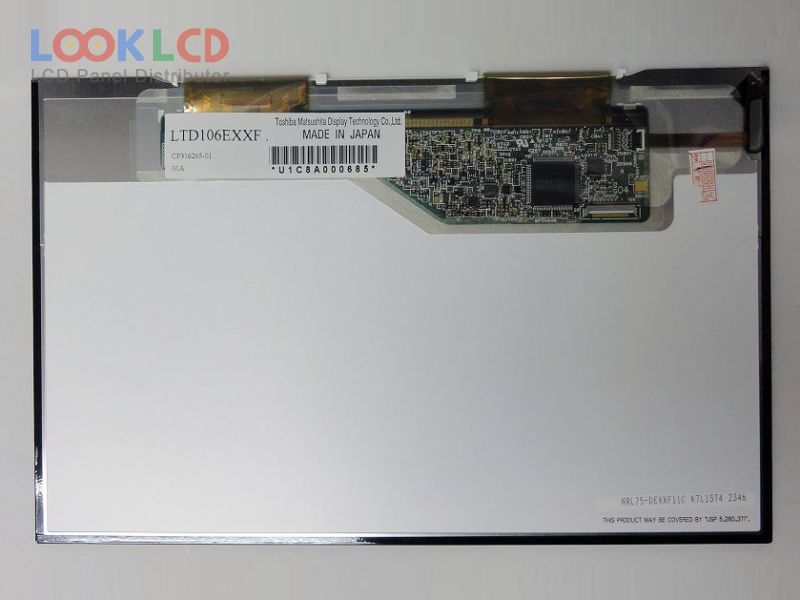

| Varenummer | LTD106EXXF |
| Mærke | TOSHIBA |
| Størrelse | 10.6 |
| Ansøgning | NBPC |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |

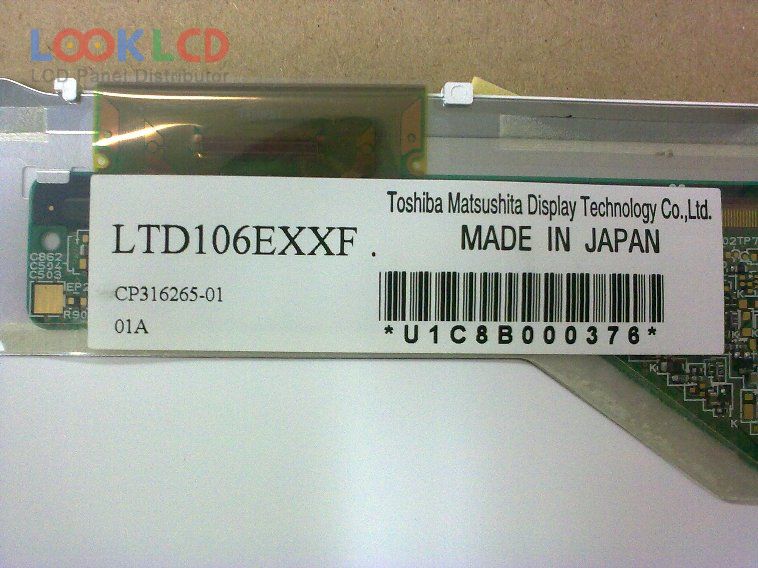

| panel mærke | Toshiba Matsushita |
| panel model | LTD106EXXF |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 10.6 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 230.4×138.24 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | WLED |

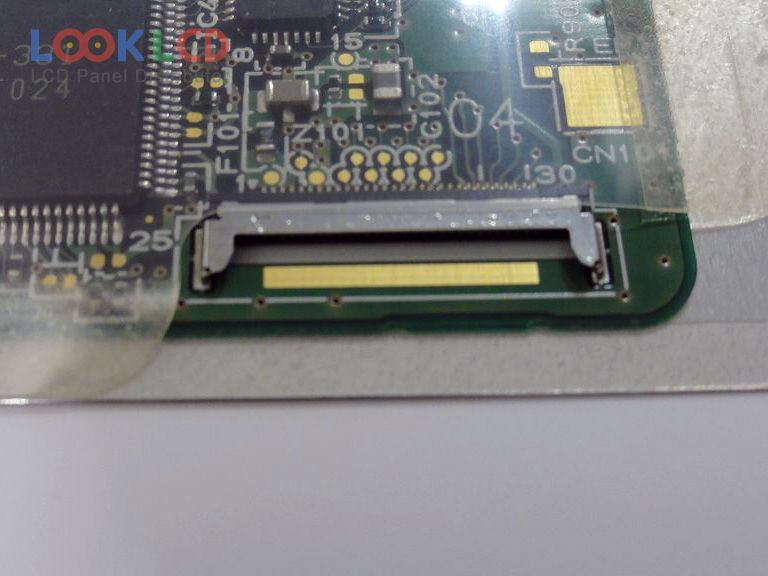

| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| Ansøgning | NBPC |
