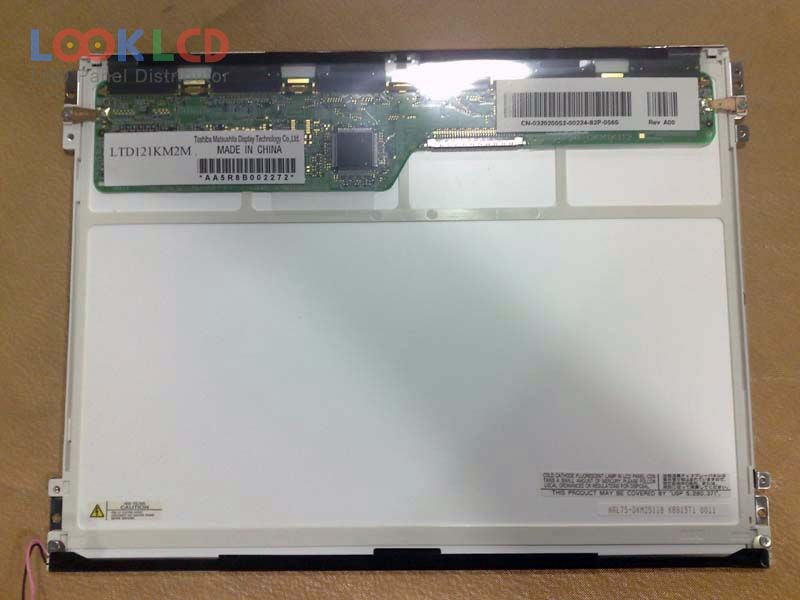

| Varenummer | LTD121KM2M |
| Mærke | TOSHIBA |
| Størrelse | 12.1 |
| Ansøgning | |
| Løsning | 1400×1050 |
| Sammensætning | LCM |
| Lysstyrke | 160 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | Toshiba Matsushita |
| panel model | LTD121KM2M |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1400(RGB)×1050 , SXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 245.7×184.275 mm |
| omrids | 269×199×6.8 mm |
| overflade | |
| lysstyrke | 160 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 50/50 (Max.)(Tr/Td) |
| synsvinkel | 50/50/45/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
