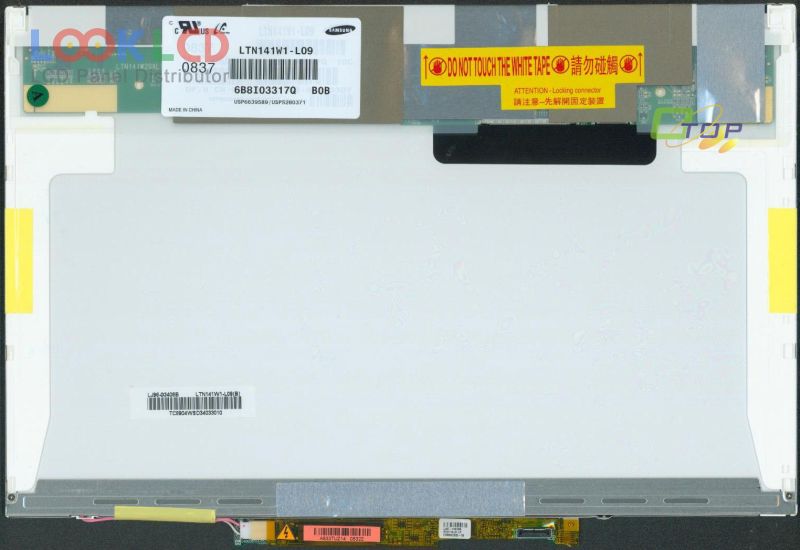

| Varenummer | LTN141W1-L09 |
| Mærke | Samsung |
| Størrelse | 14.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN141W1-L09 9 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 303.36×189.6 mm |
| omrids | 319.5×218×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 50/50/25/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
