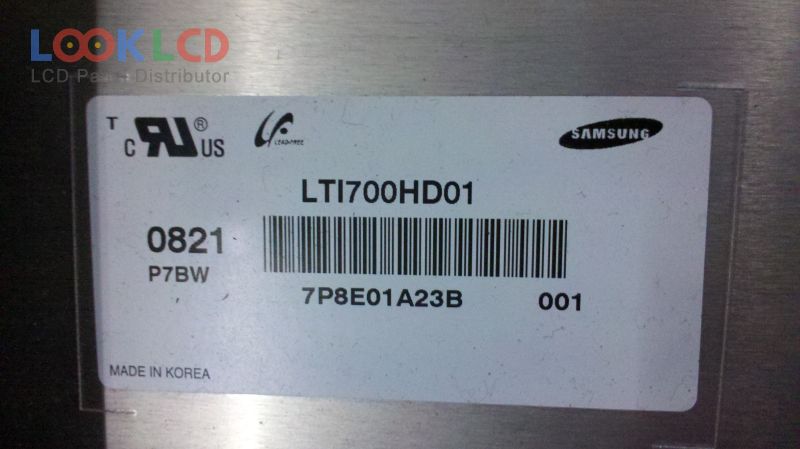

| Varenummer | LTI700HD01-001 |
| Mærke | Samsung |
| Størrelse | 70 |
| Ansøgning | PID |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 1500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTI700HD01-001 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 70 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | S-PVA, Normally Black, Transmissive |
| aktivt område | 1549.44×871.56 mm |
| omrids | 1630×952 mm |
| overflade | Antiglare (Haze 44%), Hard coating (3H) |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 1500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 10/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 80 pcsCCFLEmbedded (Inverter) |
| signal interface | LVDS (2 ch, 8-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | PID |
