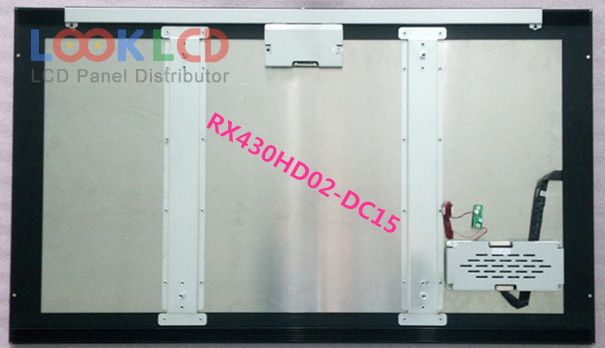

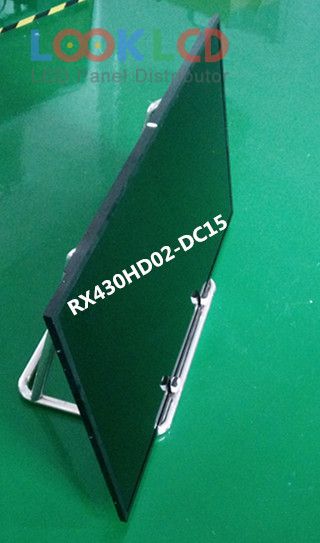

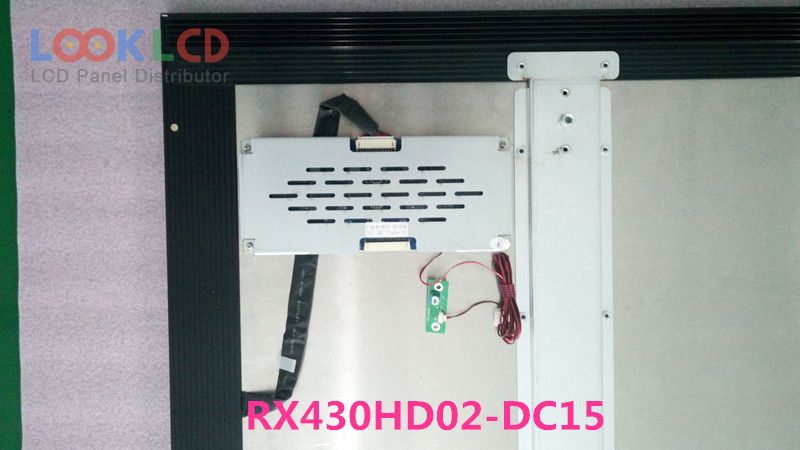

| Varenummer | RX430HD02-DC15 |
| Mærke | ROGIN |
| Størrelse | 43 |
| Ansøgning | PID |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 1500 |
| CR | 3000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | ROGIN |
| panel model | RX430HD02-DC15 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 43 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | Normally Black, Transmissive |
| aktivt område | 941.184×529.416 mm |
| omrids | 973.2×561.5×30 mm |
| overflade | Antiglare (Haze 1%), Hard coating (3H) |
| lysstyrke | 1500 cd/m² (Typ.) |
| kontrastforhold | 3000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193168% |
| responstid | 6.5 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | PID |
| LC430DUE-FJM1 | LG Display | 43 | 1920×1080 |
| LC430DUY-SHA1 | LG Display | 43 | 1920×1080 |
| LC430DUY-SHA3 | LG Display | 43 | 1920×1080 |
| LC430EGE-FHM1 | LG Display | 43 | 3840×2160 |
| LC430EGY-SHM1 | LG Display | 43 | 3840×2160 |
| LTA430HN01 | Samsung | 43 | 1920×1080 |
| LTA430HW01 | Samsung | 43 | 1920×1080 |
| LTI430LA01 | Samsung | 43 | 1920×480 |
| RX430HD02-DC15 | ROGIN | 43 | 1920×1080 |
| LD470EUP-SEB1 | LG Display | 47 | 1920×1080 |
| LTI460HN03 | Samsung | 46 | 1920×1080 |
| LTI520HB02 | Samsung | 52 | 1920×1080 |
| LTI570HD01 | Samsung | 57 | 1920×1080 |
| LTI750HF01 | Samsung | 75 | 1920×1080 |
| P460HW02 V0 | AUO | 46 | 1920×1080 |
| P650HVN02.2 | AUO | 65 | 1920×1080 |
| RX366HDL-C07 | ROGIN | 36.6 | 1920×290 |
| RX430HD02-DC15 | ROGIN | 43 | 1920×1080 |
| RX650-Z20 | ROGIN | 65 | 1920×1080 |
