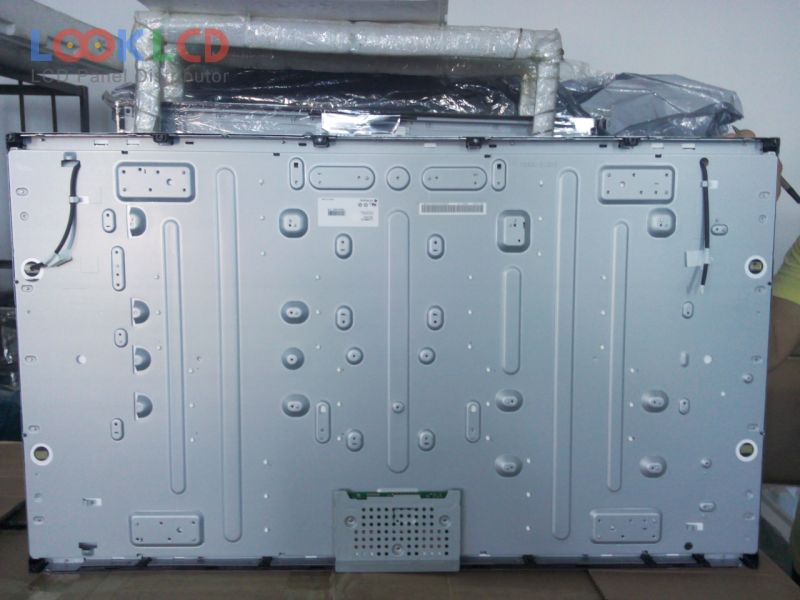

| Varenummer | RX420-Z15 |
| Mærke | ROGIN |
| Størrelse | 42 |
| Ansøgning | PID |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 1500 |
| CR | 1200:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | ROGIN |
| panel model | RX420-Z15 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 42 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 927.94×521.96 mm |
| omrids | 956.4×555 mm |
| overflade | Antiglare (Haze 1%), Hard coating (2H) |
| lysstyrke | 1500 cd/m² (Typ.) |
| kontrastforhold | 1200:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193168% |
| responstid | 6 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 10-bit), 51 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | PID |
| LC420DUH-FGA1 | LG Display | 42 | 1920×1080 |
| LC420DUK-SGK2 | LG Display | 42 | 1920×1080 |
| LC420EUF-SDF1 | LG Display | 42 | 1920×1080 |
| LC420WUN-SAB1 | LG Display | 42 | 1920×1080 |
| LC420WUN-SCB1 | LG Display | 42 | 1920×1080 |
| RX420-Z15 | ROGIN | 42 | 1920×1080 |
| T420HVF04.0 | AUO | 42 | 1920×1080 |
| T420HW02 V0 | AUO | 42 | 1920×1080 |
| T420HW09 V1 | AUO | 42 | 1920×1080 |
| V420HK1-LS5 | Innolux | 42 | 1920×1080 |
| BRS550H2 | BERISE | 55 | 1920×1080 |
| LD550WUP-SCA1 | LG Display | 55 | 1920×1080 |
| LD840EQD-SEM1 | LG Display | 84 | 3840×2160 |
| LTI430LA02 | Samsung | 43 | 1920×480 |
| LTI460HM01 | Samsung | 46 | 1920×1080 |
| LTI460HN05 | Samsung | 46 | 1920×1080 |
| P550HVN06.0 | AUO | 55 | 1920×1080 |
| P650HVN02.3 | AUO | 65 | 1920×1080 |
| RX415TXP01 | ROGIN | 41.5 | 1920×540 |
| RX430HD02-DC15 | ROGIN | 43 | 1920×1080 |
