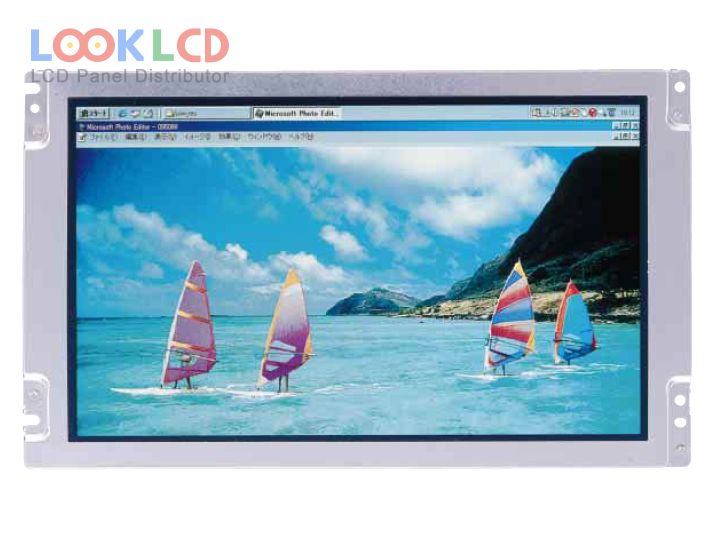

| Varenummer | LTM07C382 |
| Mærke | TOSHIBA |
| Størrelse | 7.0 |
| Ansøgning | MP4 |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 150 |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | TOSHIBA |
| panel model | LTM07C382 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 182×108.5 mm |
| overflade | |
| lysstyrke | 150 cd/m² (Typ.) |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | |
| lampe type | 1 pcsCCFL |
| signal interface | LVDS (1 ch, 6-bit) |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | MP4 |
| LTM024P339 | TOSHIBA | 2.4 | 240×320 |
| LTM035A776B | TOSHIBA | 3.5 | 240×320 |
| LTM035A776C | TOSHIBA | 3.5 | 240×320 |
| LTM07C383 | TOSHIBA | 7.8 | 480×234 |
| LTM08C343S | TOSHIBA | 8.4 | 800×600 |
| LTM08C351L | TOSHIBA | 8.4 | 800×600 |
| LTM08C351S | TOSHIBA | 8.4 | 800×600 |
| LTM08C355S | TOSHIBA | 8.4 | 800×600 |
| LTM08C356F | TOSHIBA | 8.4 | 800×600 |
| LTM09C015A | TOSHIBA | 9.4 | 640×480 |
| AT070TN92 V.4 | Innolux | 7.0 | 800×480 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| DLC0700JMG-6 | Other | 7.0 | 1024×600 |
| ED070NA-01N | Innolux | 7.0 | 1024×600 |
| LB070WV6-TD06 | LG Display | 7.0 | 800×480 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| LMS700KF23 | Samsung | 7.0 | 800×480 |
| LTM07C382 | TOSHIBA | 7.0 | 1024×600 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
