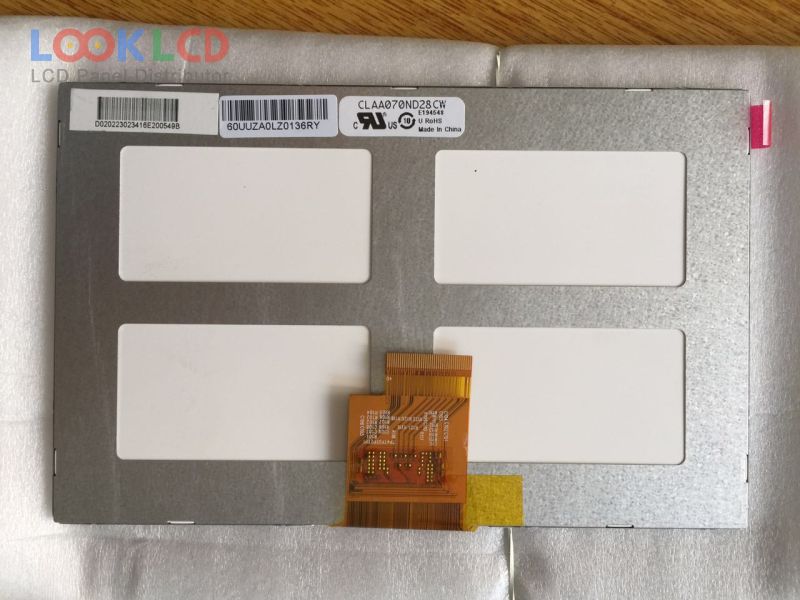

| Varenummer | CLAA070ND28CW |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | MP4 |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 700:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA070ND28CW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 165.75×105.39×3 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| indgangsspænding | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | MP4 |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070LC0CCW | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| CLAA070NB02CT | CPT | 7.0 | 1024×600 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| CLAA070ND22CW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| DLC0700EZG-T-2 | Other | 7.0 | 800×480 |
| HJ070NA-13D | Innolux | 7.0 | 1024×600 |
| LB070WV6-TD08 | LG Display | 7.0 | 800×480 |
| N070LGE-L21 | Innolux | 7.0 | 1024×600 |
| TM050RBH01 | Tianma | 5.0 | 800×480 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
