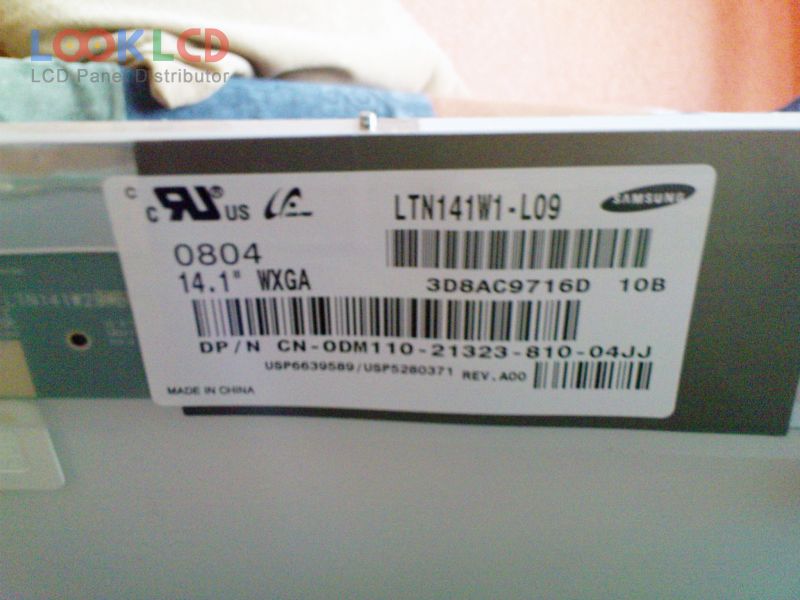

| Varenummer | LTN141W1-L09-1 |
| Mærke | Samsung |
| Størrelse | 14.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN141W1-L09-1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 303.36×189.6 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFL |
| signal interface | LVDS (1 ch, 6-bit) |
| Ansøgning | NBPC |
| B141EW05 V2 | AUO | 14.1 | 1280×800 |
| HT14X1B-201 | HYDIS | 14.1 | 1024×768 |
| LP141WP1-TLA3 | LG Display | 14.1 | 1440×900 |
| LP141WXV-SLA2 | LG Display | 14.1 | 1280×800 |
| LTN141W1-L02 | Samsung | 14.1 | 1280×800 |
| LTN141W1-L04 | Samsung | 14.1 | 1280×800 |
| LTN141W1-L09 | Samsung | 14.1 | 1280×800 |
| LTN141W1-L09-1 | Samsung | 14.1 | 1280×800 |
| LTN141WD-L05 | Samsung | 14.1 | 1440×900 |
| N141C3-L04 | Innolux | 14.1 | 1440×900 |
| B125HAN01.0 | AUO | 12.5 | 1920×1080 |
| B140HAN01.2 | AUO | 14.0 | 1920×1080 |
| LP104V2 | LG Display | 10.4 | 640×480 |
| LP141WX5-TLA1 | LG Display | 14.1 | 1280×800 |
| LP156WH2-TLR1 | LG Display | 15.6 | 1366×768 |
| LQ141X1LH03 | SHARP | 14.1 | 1024×768 |
| LTM09C362 | TOSHIBA | 8.9 | 1024×600 |
| LTN156AT11-A01 | Samsung | 15.6 | 1366×768 |
| LTN173HT02-X01 | Samsung | 17.3 | 1920×1080 |
| N133I5-L01 | Innolux | 13.3 | 1280×800 |
