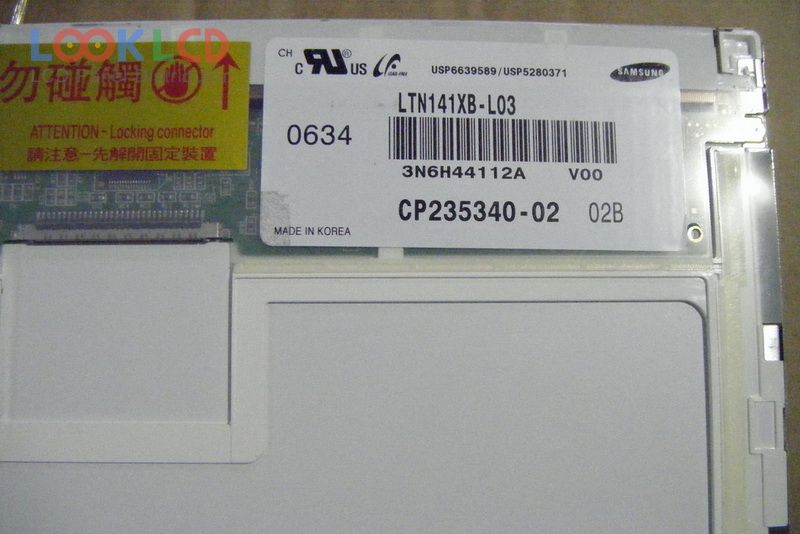

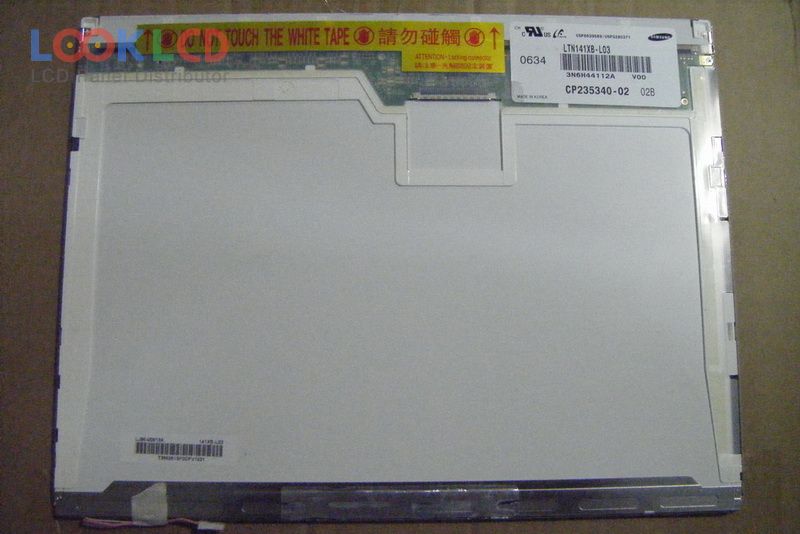

| Varenummer | LTN141XB-L03 |
| Mærke | Samsung |
| Størrelse | 14.1 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 180 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN141XB-L03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 285.696×214.272 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 180 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 10/30 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/30/10 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LTN141AT05-G03 | Samsung | 14.1 | 1280×800 |
| LTN141AT09-301 | Samsung | 14.1 | 1280×800 |
| LTN141AT13-B01 | Samsung | 14.1 | 1280×800 |
| LTN141AT16-001 | Samsung | 14.1 | 1280×800 |
| LTN141AT16-002 | Samsung | 14.1 | 1280×800 |
| LTN141W1-L04 | Samsung | 14.1 | 1280×800 |
| LTN141X8-L00 | Samsung | 14.1 | 1024×768 |
| LTN141XB-L02 | Samsung | 14.1 | 1024×768 |
| LTN141XB-L03 | Samsung | 14.1 | 1024×768 |
| LTN141XB-L04 | Samsung | 14.1 | 1024×768 |
| B133XTN01.6 HW0A | AUO | 13.3 | 1366×768 |
| B156XTT01.1 | AUO | 15.6 | 1366×768 |
| CLAA141WB05A | CPT | 14.1 | 1280×800 |
| LP140WX1-TL02 | LG Display | 14.0 | 1280×768 |
| LP141X3 | LG Display | 14.1 | 1024×768 |
| LP156WH2-TLAA | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLE1 | LG Display | 15.6 | 1366×768 |
| LTN140AT11-L02 | Samsung | 14.0 | 1366×768 |
| LTN156AT05-601 | Samsung | 15.6 | 1366×768 |
| N154I4-L04 | Innolux | 15.4 | 1280×800 |
