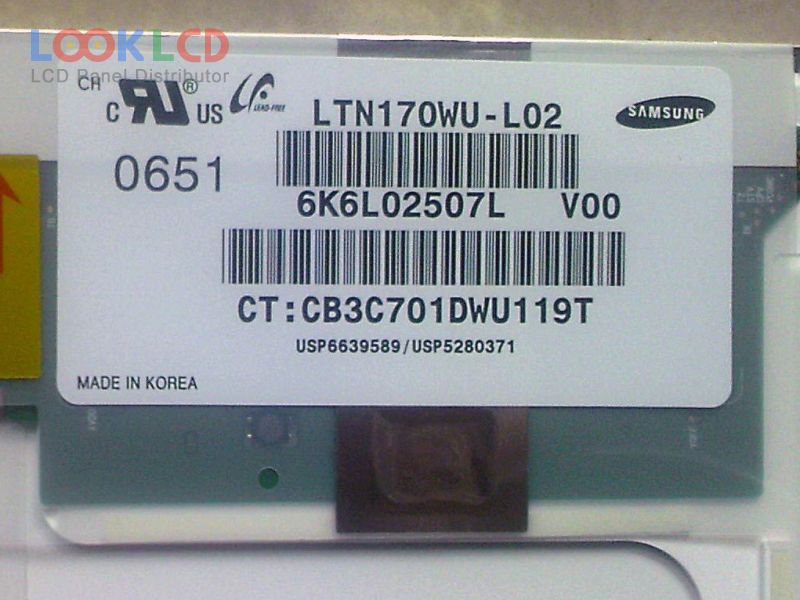

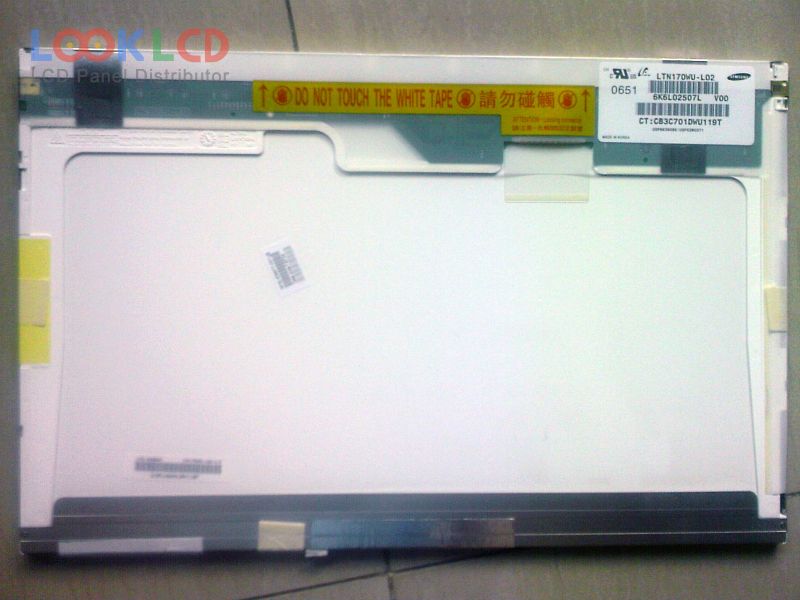

| Varenummer | LTN170WU-L02 |
| Mærke | Samsung |
| Størrelse | 17.0 |
| Ansøgning | NBPC |
| Løsning | 1920×1200 |
| Sammensætning | LCM |
| Lysstyrke | 185 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN170WU-L02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1920(RGB)×1200 , WUXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 367.2×229.5 mm |
| omrids | 382.2×244.5×7 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (2H), Antireflection |
| lysstyrke | 185 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
