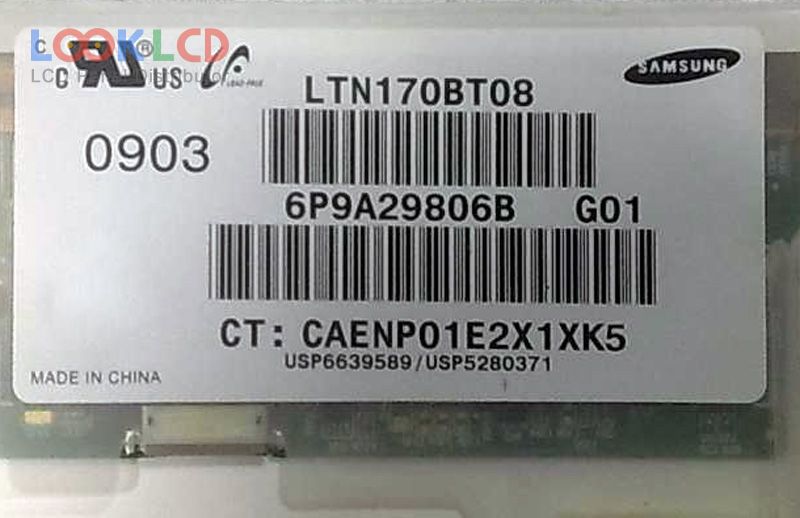

| Varenummer | LTN170BT08-G01 |
| Mærke | Samsung |
| Størrelse | 17.0 |
| Ansøgning | NBPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN170BT08-G01 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 367.2×229.5 mm |
| omrids | 382.2×244.5×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B170PW03 V4 | AUO | 17.0 | 1440×900 |
| LTN170BT05-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT06-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT07-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT08-G01 | Samsung | 17.0 | 1440×900 |
| LTN170BT09-001 | Samsung | 17.0 | 1440×900 |
| LTN170BT10-001 | Samsung | 17.0 | 1440×900 |
| LTN170BT11-D01 | Samsung | 17.0 | 1440×900 |
| LTN170BT11-D03 | Samsung | 17.0 | 1440×900 |
| LTN170WA-L01 | Samsung | 17.0 | 1440×900 |
| B156XTN03.5 | AUO | 15.6 | 1366×768 |
| HB125WX1-200 | BOE | 12.5 | 1366×768 |
| HB140FH1-301 | BOE | 14.0 | 1920×1080 |
| HT140WXB-601 | BOE | 14.0 | 1366×768 |
| LT121SS-124 | Samsung | 12.1 | 800×600 |
| LTN121W1-L02 | Samsung | 12.1 | 1280×800 |
| LTN133AT23-X01 | Samsung | 13.3 | 1366×768 |
| LTN156FL02-L01 | Samsung | 15.6 | 3840×2160 |
| M125NWR2 R1 | IVO | 12.5 | 1366×768 |
| N156BGE-EB1 | Innolux | 15.6 | 1366×768 |
