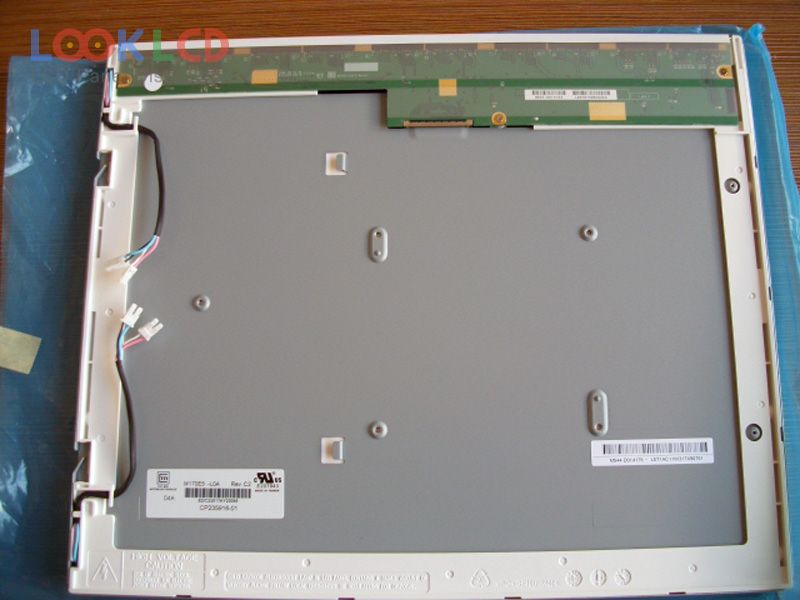

| Varenummer | M170E5-L0A |
| Mærke | Innolux |
| Størrelse | 17.0 |
| Ansøgning | DMPC |
| Løsning | 1280×1024 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 500:1 |
| Farver | 16.2M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | M170E5-L0A |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.0 inch |
| løsning | 1280(RGB)×1024 , SXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 337.92×270.336 mm |
| omrids | 358.5×296.5×17.5 mm |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC) |
| responstid | 2/6 (Typ.)(Tr/Td) |
| synsvinkel | 75/75/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
