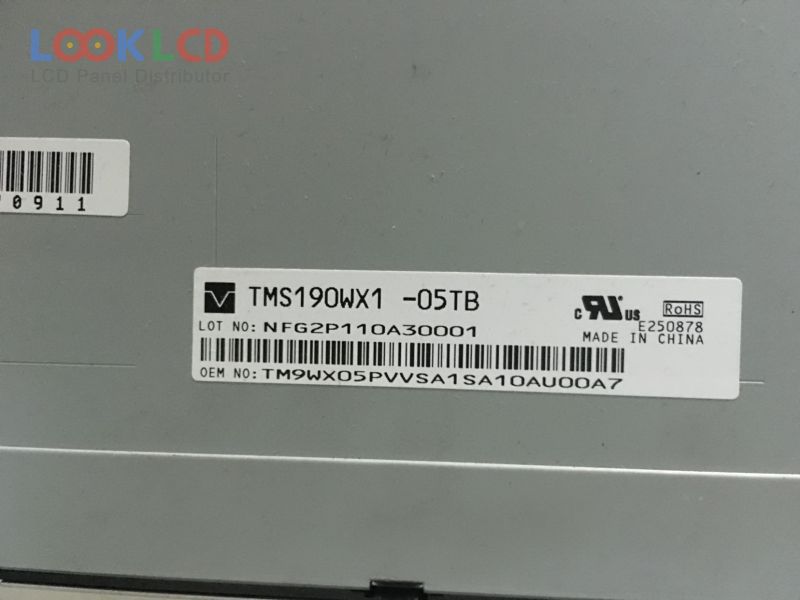

| Varenummer | TMS190WX1-05TB |
| Mærke | Tianma |
| Størrelse | 19.0 |
| Ansøgning | DMPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AVIC |
| panel model | TMS190WX1-05TB |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 19.0 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 408.24×255.15 mm |
| omrids | 428×278×17 mm |
| overflade | Antiglare |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193172% |
| responstid | 1.3/3.7 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
| HSD190ME13-A13 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN4-A03 | HannStar | 19.0 | 1280×1024 |
| LM190E08-TLG2 | LG Display | 19.0 | 1280×1024 |
| LM190E08-TLG4 | LG Display | 19.0 | 1280×1024 |
| LQ190N1LW01 | SHARP | 19.0 | 1680×1050 |
| M190E5-L0G | Innolux | 19.0 | 1280×1024 |
| M190EN04 V1 | AUO | 19.0 | 1280×1024 |
| R190E6-L01 | Innolux | 19.0 | 1280×1024 |
| TMS190WX1-05TB | Tianma | 19.0 | 1440×900 |
| TMS190WX1-08TC | Tianma | 19.0 | 1440×900 |
| A190EN02 V0 | AUO | 19.0 | 1280×1024 |
| HSD190MGW1-B00 | HannStar | 19.0 | 1440×900 |
| HT17E12-210 | HYDIS | 17.0 | 1280×1024 |
| LM215DT8A | PANDA | 21.5 | 1920×1080 |
| LM215WF3-SLA1 | LG Display | 21.5 | 1920×1080 |
| LM230WF5-TLD1 | LG Display | 23.0 | 1920×1080 |
| LM240WU7-SLB3 | LG Display | 24.0 | 1920×1200 |
| LM300W01-STA4 | LG Display | 30.0 | 2560×1600 |
| M190EN04 V1 | AUO | 19.0 | 1280×1024 |
| M280DGJ-L30 | Innolux | 28.0 | 3840×2160 |
