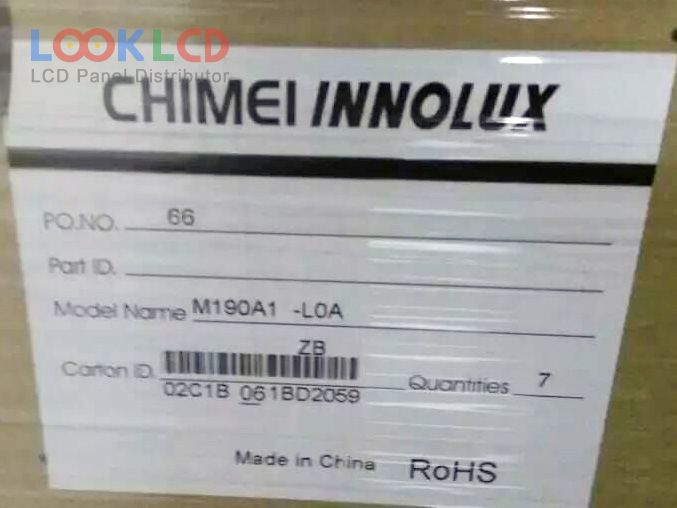

| Varenummer | M190A1-L0A |
| Mærke | Innolux |
| Størrelse | 19.0 |
| Ansøgning | DMPC |
| Løsning | 1440×900 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | M190A1-L0A |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 19.0 inch |
| løsning | 1440(RGB)×900 , WXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 408.24×255.15 mm |
| omrids | 428×278×17.6 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193172% |
| responstid | 1.5/3.5 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
| G190EAN01.0 | AUO | 19.0 | 1280×1024 |
| HSD190MEN4-A03 | HannStar | 19.0 | 1280×1024 |
| LM190E05-SL02 | LG Display | 19.0 | 1280×1024 |
| LM190E08-TLGD | LG Display | 19.0 | 1280×1024 |
| M190A1-L01 | Innolux | 19.0 | 1440×900 |
| M190A1-L02 | Innolux | 19.0 | 1440×900 |
| M190A1-L07 | Innolux | 19.0 | 1440×900 |
| M190A1-L0A | Innolux | 19.0 | 1440×900 |
| M190A1-L0G | Innolux | 19.0 | 1440×900 |
| M190PW01 V0 | AUO | 19.0 | 1440×900 |
| A190EN02 V0 | AUO | 19.0 | 1280×1024 |
| HM215WU3-101 | BOE | 21.5 | 1920×1080 |
| HT190WG1-100 | BOE | 19.0 | 1440×900 |
| LM170E01-TLBF | LG Display | 17.0 | 1280×1024 |
| LM185WH1-TLF4 | LG Display | 18.5 | 1366×768 |
| LM190E08-TLL3 | LG Display | 19.0 | 1280×1024 |
| LM270WF5-SLB1 | LG Display | 27.0 | 1920×1080 |
| M215HJK-L3B | Innolux | 21.5 | 1920×1080 |
| M215HW03 V1 | AUO | 21.5 | 1920×1080 |
| MT215DW01 V.1 | Innolux | 21.5 | 1920×1080 |
