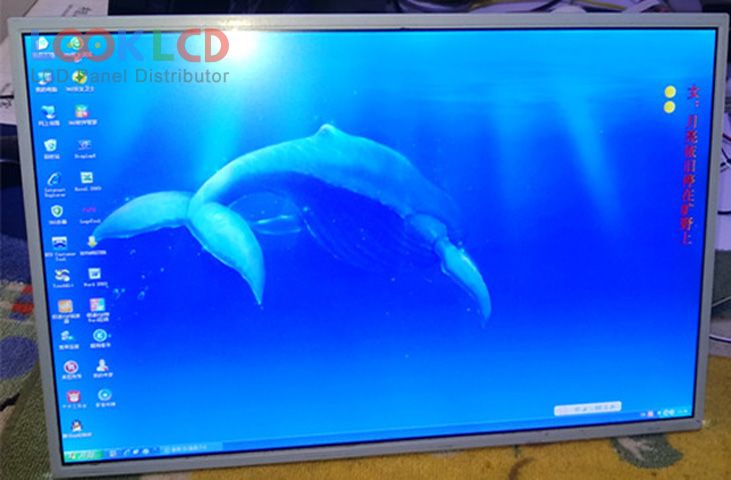

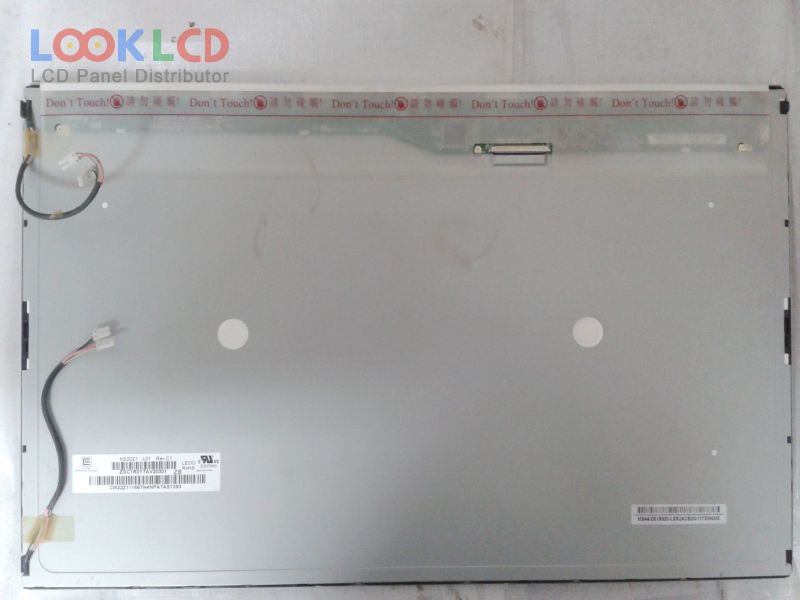

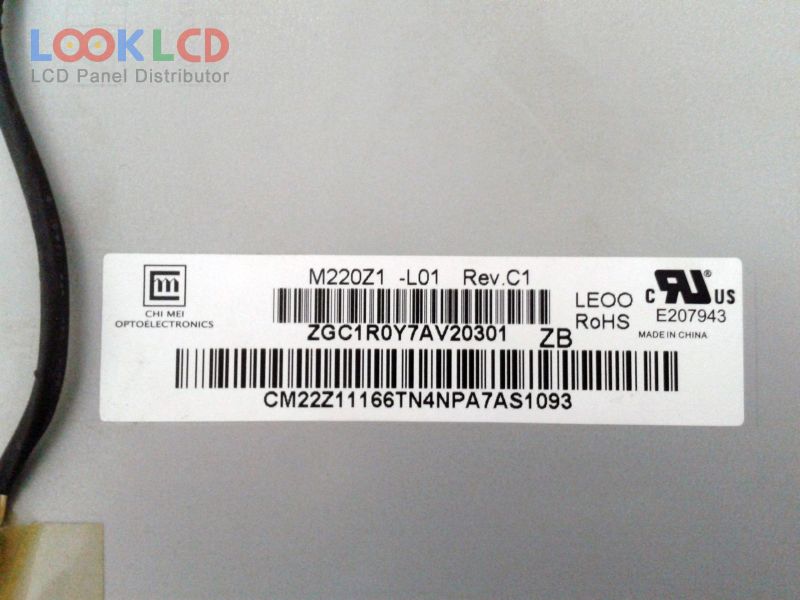

| Varenummer | M220Z1-L01 |
| Mærke | Innolux |
| Størrelse | 22.0 |
| Ansøgning | DMPC |
| Løsning | 1680×1050 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | M220Z1-L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 22.0 inch |
| løsning | 1680(RGB)×1050 , WSXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 473.76×296.1 mm |
| omrids | 493.7×320.1 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193170% |
| responstid | 2/3 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
| LM220WE1-TLK1 | LG Display | 22.0 | 1680×1050 |
| LTA220W1-L02 | Samsung | 22.0 | 1280×720 |
| M220Z1-L01 | Innolux | 22.0 | 1680×1050 |
| M220Z1-L03 | Innolux | 22.0 | 1680×1050 |
| M220Z1-L05 | Innolux | 22.0 | 1680×1050 |
| M220Z1-L09 | Innolux | 22.0 | 1680×1050 |
| M220Z1-L0A | Innolux | 22.0 | 1680×1050 |
| M220Z1-P03 | Innolux | 22.0 | 1680×1050 |
| M220Z3-LA3 | Innolux | 22.0 | 1680×1050 |
| M220ZGE-L20 | Innolux | 22.0 | 1680×1050 |
| LM195WD1-TLA1 | LG Display | 19.5 | 1600×900 |
| LM201U02-A3C3 | LG Display | 20.1 | 1600×1200 |
| LM240WU7-SLA1 | LG Display | 24.0 | 1920×1200 |
| LM240WU8-SLD4 | LG Display | 24.0 | 1920×1200 |
| M170E5-L0A | Innolux | 17.0 | 1280×1024 |
| M185BGE-L22 | Innolux | 18.5 | 1366×768 |
| M215HGE-L21 | Innolux | 21.5 | 1920×1080 |
| M240HW01 VC | AUO | 24.0 | 1920×1080 |
| M260J3-L01 | Innolux | 25.5 | 1920×1200 |
| MT190AW02 V.W | Innolux | 19.0 | 1440×900 |
