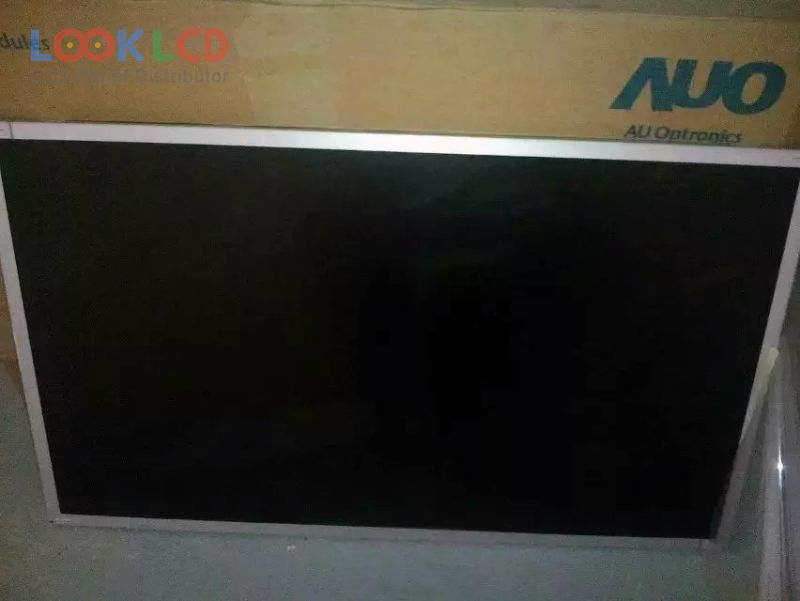

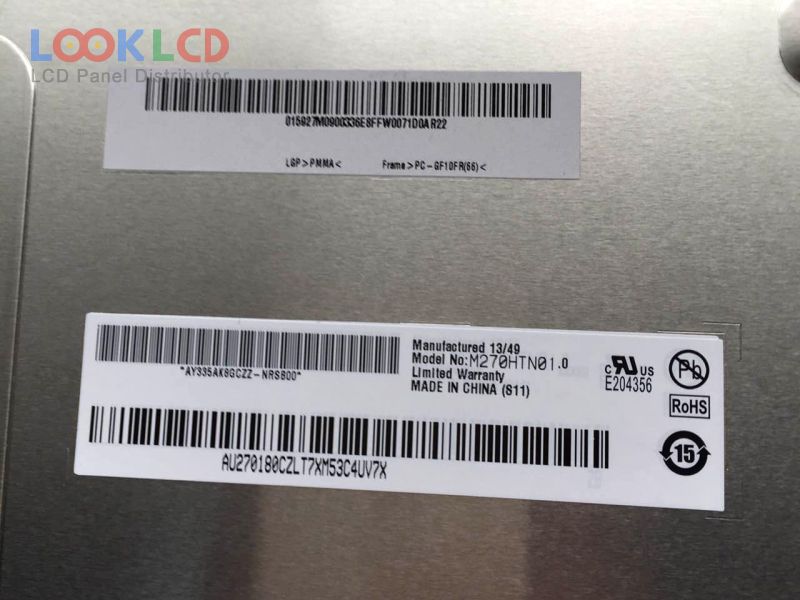

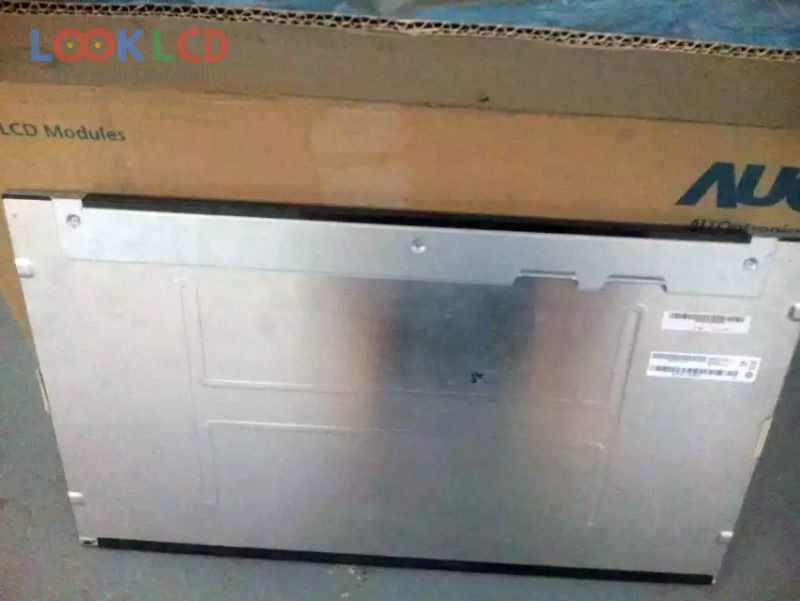

| Varenummer | M270HTN01.0 |
| Mærke | AUO |
| Størrelse | 27.0 |
| Ansøgning | DMPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | M270HTN01.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 27.0 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 597.6×336.15 mm |
| omrids | 630×368.2×14.6 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193172% |
| responstid | 3.8/1.2 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 144Hz |
| lampe type | 13S4PWLEDWithout Driver |
| signal interface | LVDS (4 ch, 8-bit), 70 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
