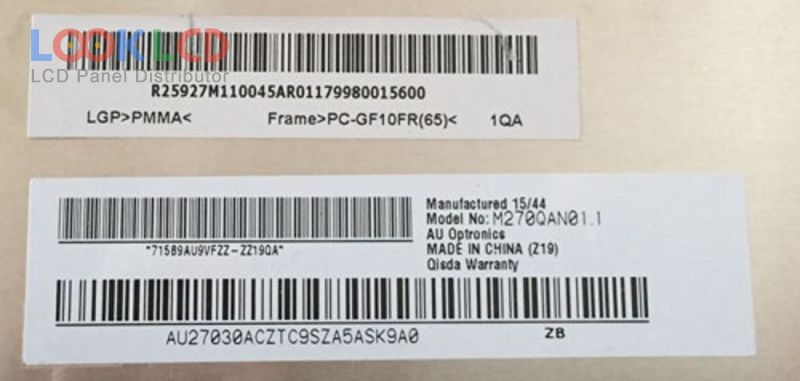

| Varenummer | M270QAN01.1 |
| Mærke | AUO |
| Størrelse | 27.0 |
| Ansøgning | DMPC |
| Løsning | 3840×2160 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 1000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | AUO |
| panel model | M270QAN01.1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 27.0 inch |
| løsning | 3840(RGB)×2160 , UHD |
| visningstilstand | AHVA, Normally Black, Transmissive |
| aktivt område | 596.16×335.34 mm |
| omrids | 608.8×354.71×14.58 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 1.07B (10-bit), sRGB100% |
| responstid | 12 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 22S4PWLEDWithout Driver |
| signal interface | eDP (2 ch, 4 Lanes), 41 pins |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | DMPC |
