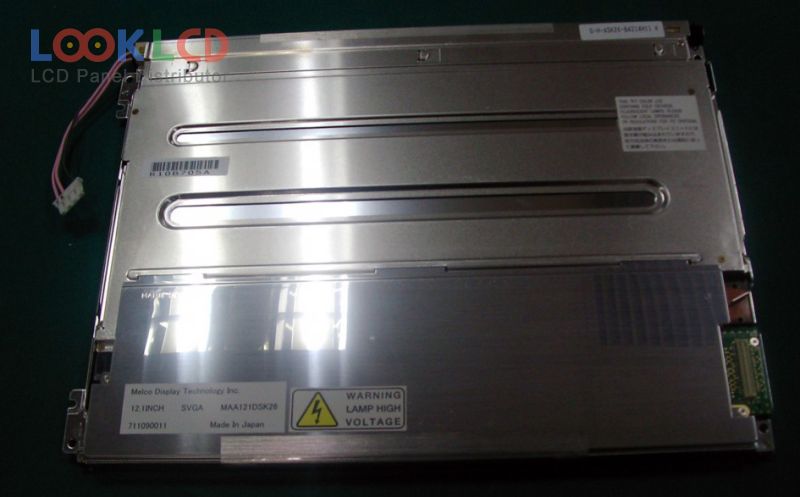

| Varenummer | MAA121DSK26 |
| Mærke | Mitsubishi |
| Størrelse | 12.1 |
| Ansøgning | IA |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | Mitsubishi MDTI |
| panel model | MAA121DSK26 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 246×184.5 mm |
| omrids | 280×210×12.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 20/30 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 41 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(VCC) |
| Ansøgning | IA |
