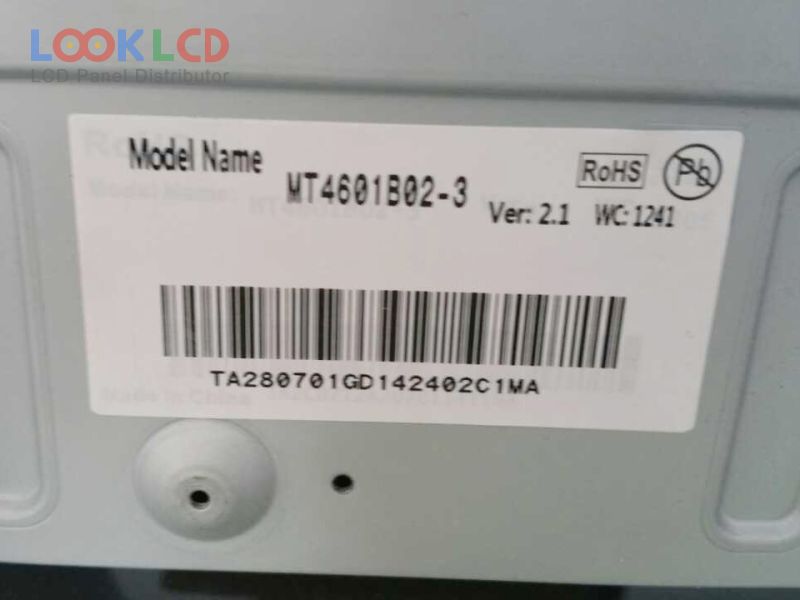

| Varenummer | MT4601B02-3 |
| Mærke | CSOT |
| Størrelse | 46 |
| Ansøgning | LCTV |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 4000:1 |
| Farver | 1.07B |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CSOT |
| panel model | MT4601B02-3 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 46 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | HVA, Normally Black, Transmissive |
| aktivt område | 1018.08×572.67 mm |
| overflade | Antiglare (Haze 2%), Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 4000:1 (Typ.) |
| vise farver | 1.07B (8-bit + Hi-FRC), CIE193172% |
| responstid | 6.5 (Typ.)(G to G) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 120Hz (60Hz Input) |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 10-bit) |
| indgangsspænding | 12.0V (Typ.) |
| Ansøgning | LCTV |
| LTI460HN03 | Samsung | 46 | 1920×1080 |
| LTI460HN05 | Samsung | 46 | 1920×1080 |
| LTI460HN09 | Samsung | 46 | 1920×1080 |
| MT4601B02-1 | CSOT | 46 | 1920×1080 |
| MT4601B02-3 | CSOT | 46 | 1920×1080 |
| P460HW02 V0 | AUO | 46 | 1920×1080 |
| T460HVN05.1 CELL | AUO | 46 | 1920×1080 |
| T460HW08 V0 | AUO | 46 | 1920×1080 |
| V460H1-L12 | Innolux | 46 | 1920×1080 |
| V460H1-LE3 | Innolux | 46 | 1920×1080 |
| LC185EXN-SCA1 | LG Display | 18.5 | 1366×768 |
| LC420WU5-SLA1 | LG Display | 42 | 1920×1080 |
| LC470EUE-SEF1 | LG Display | 47 | 1920×1080 |
| LC550EQN-PGF1 | LG Display | 55 | 3840×2160 |
| T216XW01 V0 | AUO | 21.6 | 1366×768 |
| T260XW02 V9 | AUO | 26.0 | 1366×768 |
| T550QVN02.0 CELL | AUO | 55 | 3840×2160 |
| T650HVN06.0 | AUO | 65 | 1920×1080 |
| V390HK1-LS6 | Innolux | 39 | 1920×1080 |
| V500HK1-LS6 Rev.C7 | Innolux | 50 | 1920×1080 |
