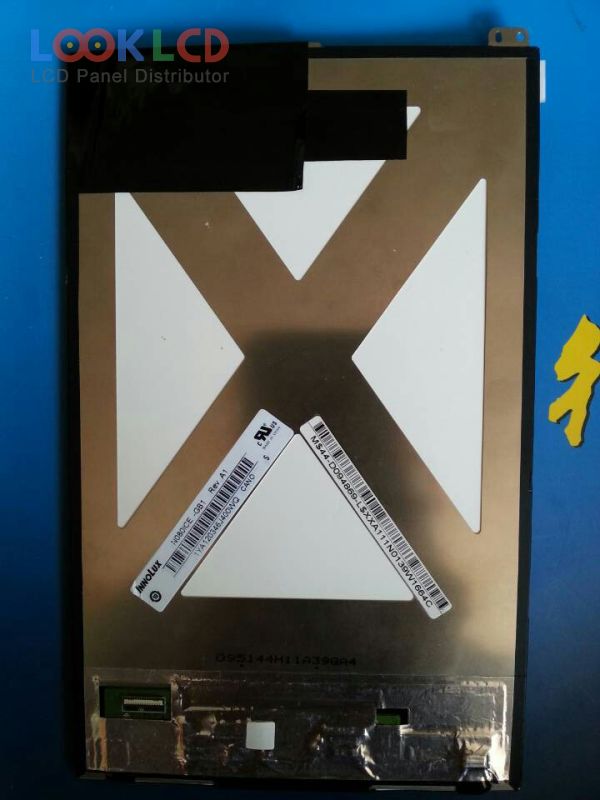

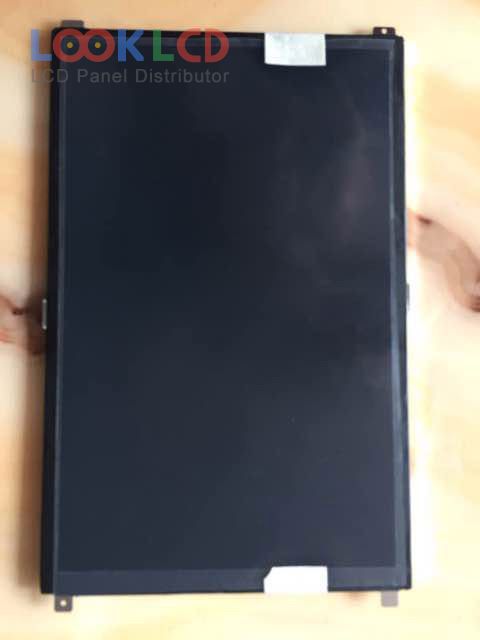

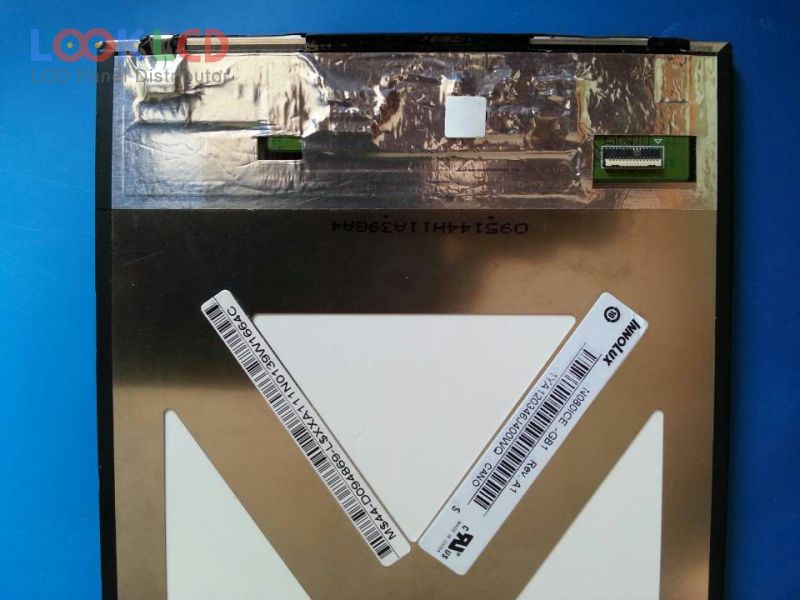

| Varenummer | N080ICE-GB1 |
| Mærke | Innolux |
| Størrelse | 8.0 |
| Ansøgning | PAD |
| Løsning | 800×1280 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | INNOLUX |
| panel model | N080ICE-GB1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×1280 , WXGA |
| visningstilstand | AAS, Normally Black, Transmissive |
| aktivt område | 107.64×172.224 mm |
| omrids | 120.65×187.64×5.1 mm |
| overflade | Hard coating (3H), Antireflection |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193160% |
| responstid | 25 (Typ.)(Tr+Tf) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 31 pins |
| indgangsspænding | 1.8/3.6V (Typ.)(VDD/VCI) |
| Ansøgning | PAD |
| B080EAN02.2 | AUO | 8.0 | 800×1280 |
| C080VW02 V0 | AUO | 8.0 | 800×480 |
| LSL080AL02-B01 | Samsung | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.A1 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.B1 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.C1 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.C2 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| TV080X0M-NS0 | BOE | 8.0 | 768×1024 |
| B101EW05 V1 | AUO | 10.1 | 1280×800 |
| B116XAN03.1 HW0A | AUO | 11.6 | 1366×768 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| CLAP070WP03XG | CPT | 7.0 | 800×1280 |
| HJ101IA-01F | Innolux | 10.1 | 1280×800 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| LD070WX6-SM01 | LG Display | 7.0 | 800×1280 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| LTL106HL02-001 | Samsung | 10.6 | 1920×1080 |
| VVX10F034N00 | Panasonic | 10.1 | 1920×1200 |
