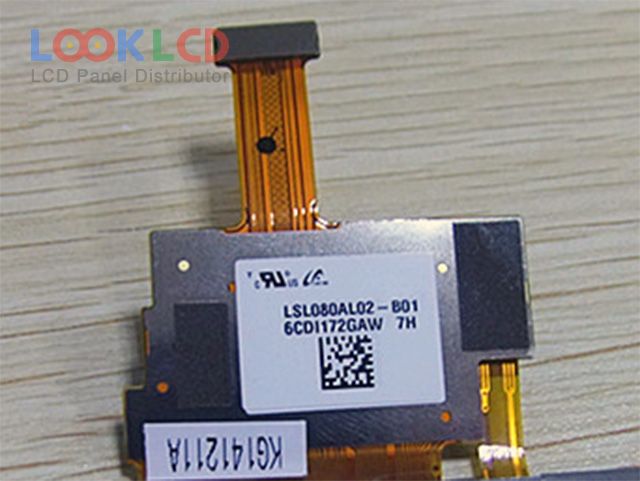

| Varenummer | LSL080AL02-B01 |
| Mærke | Samsung |
| Størrelse | 8.0 |
| Ansøgning | PAD |
| Løsning | 800×1280 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Analog |
| panel mærke | SAMSUNG |
| panel model | LSL080AL02-B01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×1280 , WXGA |
| visningstilstand | PLS, Normally Black, Transmissive |
| aktivt område | 107.64×172.224 mm |
| overflade | Hard coating |
| lysstyrke | |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193155% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLED |
| Ansøgning | PAD |
| A080SN02 V0 | AUO | 8.0 | 800×600 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HSD080IFW1-A00 | HannStar | 8.0 | 1024×600 |
| LA080WV4-SD03 | LG Display | 8.0 | 800×480 |
| LSL080AL02-002 | Samsung | 8.0 | 800×1280 |
| LSL080AL02-B01 | Samsung | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.A0 | Innolux | 8.0 | 800×1280 |
| N080ICE-GB0 Rev.A1 | Innolux | 8.0 | 800×1280 |
| PD080SL3 | E Ink | 8.0 | 800×600 |
| ZJ080NA-08A | Innolux | 8.0 | 1024×600 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| CLAA101WJ02 | CPT | 10.1 | 1366×768 |
| LD070WX3-SL01 | LG Display | 7.0 | 800×1280 |
| LP101WX2-SLA1 | LG Display | 10.1 | 1280×800 |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LTL070NL01-002 | Samsung | 7.0 | 1024×600 |
| LTL106AL01-002 | Samsung | 10.6 | 1366×768 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| N101ICE-G63 | Innolux | 10.1 | 1280×800 |
