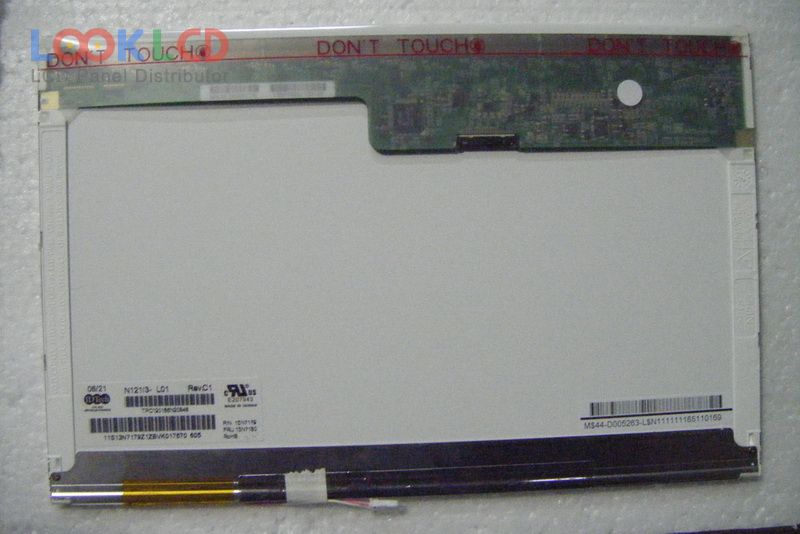

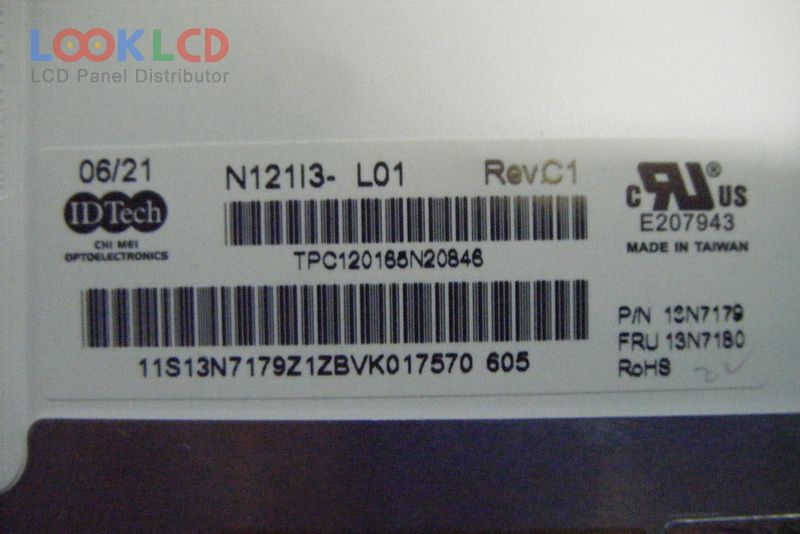

| Varenummer | N121I3-L01 |
| Mærke | Innolux |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | N121I3-L01 6 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 261.12×163.2 mm |
| omrids | 275.8×178×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 5/11 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LM12S389 | SHARP | 12.1 | 800×600 |
| N121I2-L01 | Innolux | 12.1 | 1280×800 |
| N121I3-L01 | Innolux | 12.1 | 1280×800 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
| N121I6-L01 | Innolux | 12.1 | 1280×800 |
| N121I7-L01 | Innolux | 12.1 | 1280×800 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
| N121IB-L04 | Innolux | 12.1 | 1280×800 |
| N121IB-L05 Rev.C1 | Innolux | 12.1 | 1280×800 |
| N121IB-L06 | Innolux | 12.1 | 1280×800 |
| B140XTN03.2 | AUO | 14.0 | 1366×768 |
| B156XW02 V3 | AUO | 15.6 | 1366×768 |
| BT156GW02 V.0 | Innolux | 15.6 | 1366×768 |
| HN116WX1-203 | BOE | 11.6 | 1366×768 |
| LP156WD1-TLB2 | LG Display | 15.6 | 1600×900 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| LP171WX2-TLB1 | LG Display | 17.1 | 1440×900 |
| LT121SS-124 | Samsung | 12.1 | 800×600 |
| LTN141AT09-101 | Samsung | 14.1 | 1280×800 |
| N116HSE-EA1 | Innolux | 11.6 | 1920×1080 |
