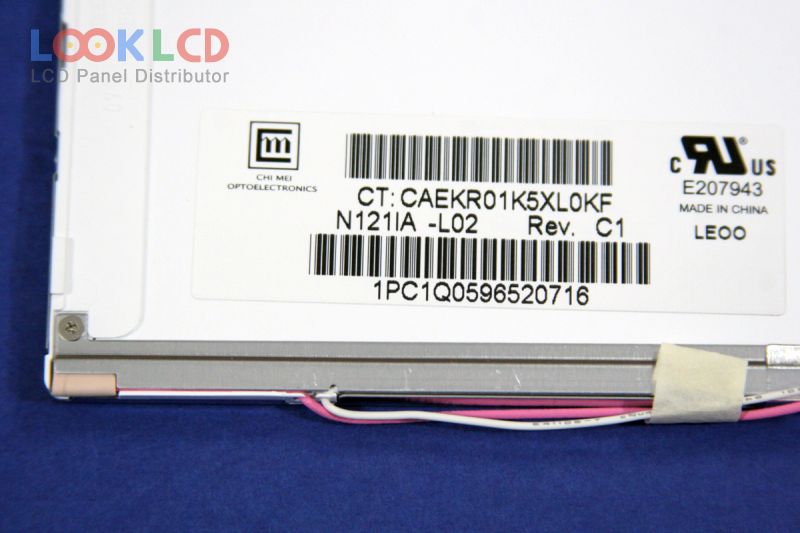

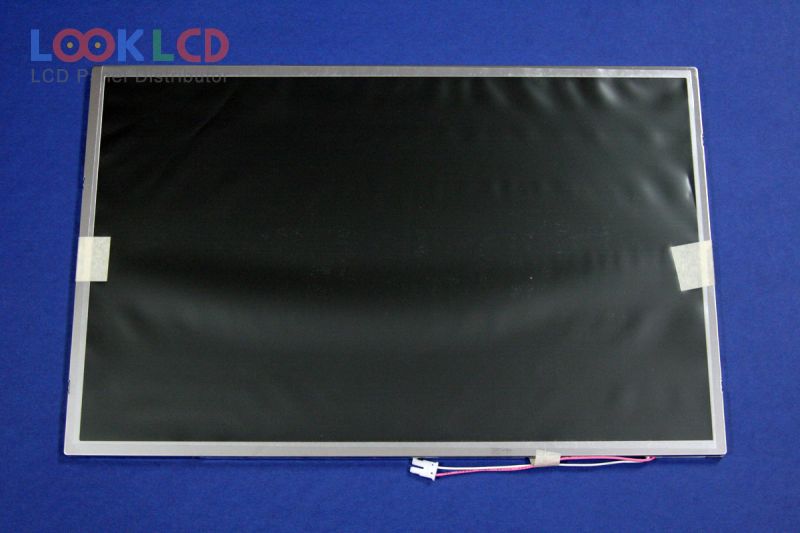

| Varenummer | N121IA-L02 |
| Mærke | Innolux |
| Størrelse | 12.1 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CMO |
| panel model | N121IA-L02 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 261.12×163.2 mm |
| omrids | 275.8×178×6.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 3/7 (Typ.)(Tr/Td) |
| synsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| L5S30341P00 | SANYO | 12.1 | 800×600 |
| N121I2-L01 | Innolux | 12.1 | 1280×800 |
| N121I3-L01 | Innolux | 12.1 | 1280×800 |
| N121I3-L03 | Innolux | 12.1 | 1280×800 |
| N121I6-L01 | Innolux | 12.1 | 1280×800 |
| N121I7-L01 | Innolux | 12.1 | 1280×800 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
| N121IB-L04 | Innolux | 12.1 | 1280×800 |
| N121IB-L05 Rev.C1 | Innolux | 12.1 | 1280×800 |
| N121IB-L06 | Innolux | 12.1 | 1280×800 |
| B133EW04 V0 | AUO | 13.3 | 1280×800 |
| LP121X1-A2M1 | LG Display | 12.1 | 1024×768 |
| LP140WX1-TL02 | LG Display | 14.0 | 1280×768 |
| LP154WT1-SJA1 | LG Display | 15.4 | 2880×1800 |
| LP154WU1-TLB1 | LG Display | 15.4 | 1920×1200 |
| LQ121X3LH01 | SHARP | 12.1 | 1024×768 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
| LTD121EXED | TOSHIBA | 12.1 | 1280×800 |
| N133BGE-LB1 | Innolux | 13.3 | 1366×768 |
| TD141TGCD1 | TPO | 14.1 | 1024×768 |
