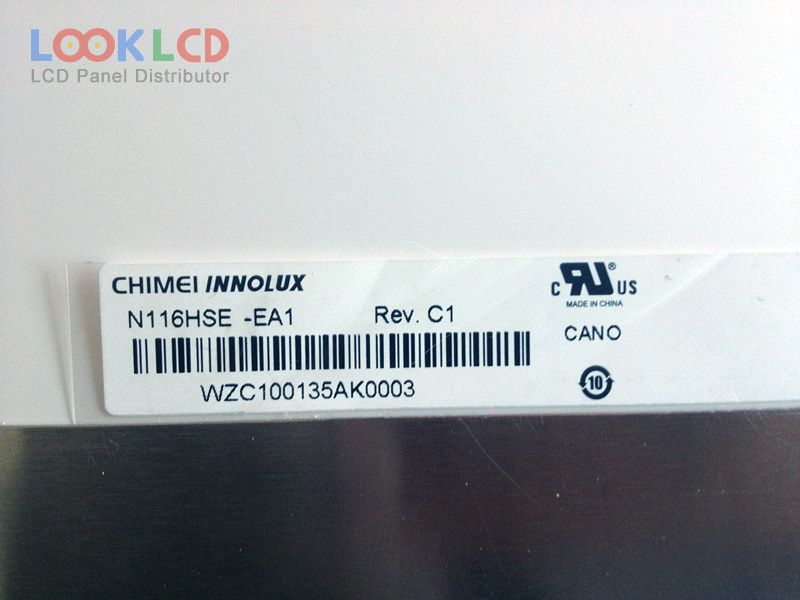

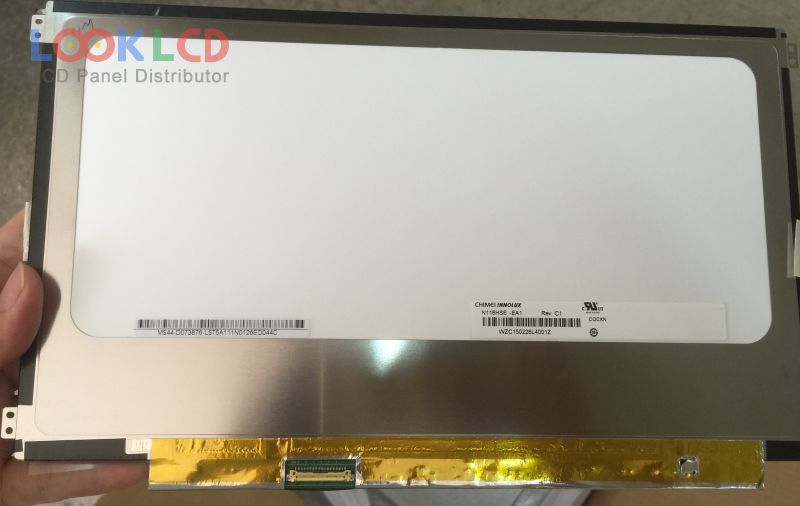

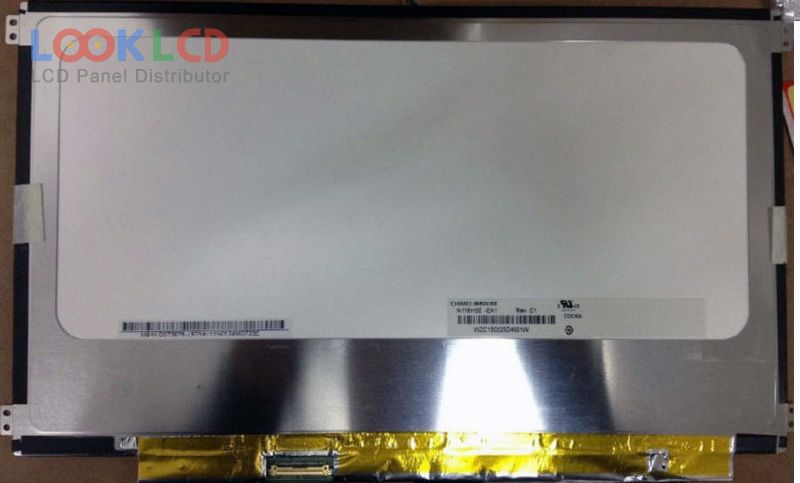

| Varenummer | N116HSE-EA1 |
| Mærke | Innolux |
| Størrelse | 11.6 |
| Ansøgning | NBPC |
| Løsning | 1920×1080 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | CHIMEI INNOLUX |
| panel model | N116HSE-EA1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 11.6 inch |
| løsning | 1920(RGB)×1080 , FHD |
| visningstilstand | AAS, Normally Black, Transmissive |
| aktivt område | 256.32×144.18 mm |
| omrids | 278×166×3.07 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 14/11 (Typ.)(Tr/Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | eDP (2 Lanes), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
